PCV VALVE REMOVAL

PROCEDURE

  1. REMOVE INTAKE MANIFOLD

    Click here

  2. REMOVE PCV VALVE

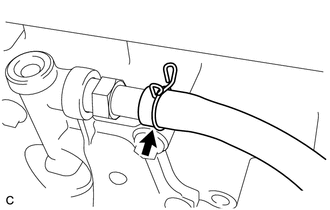

    1. A258675

      Slide the clamp and remove the No. 2 PCV hose from the PCV valve.

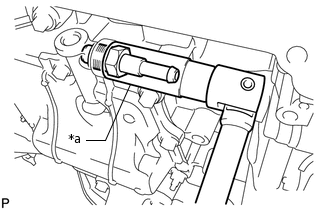

    2. A196037C07

      *a

      19 mm deep socket wrench

      Using a 19 mm deep socket wrench, remove the PCV valve from the PCV case.
