FRONT DOOR COMPONENTS

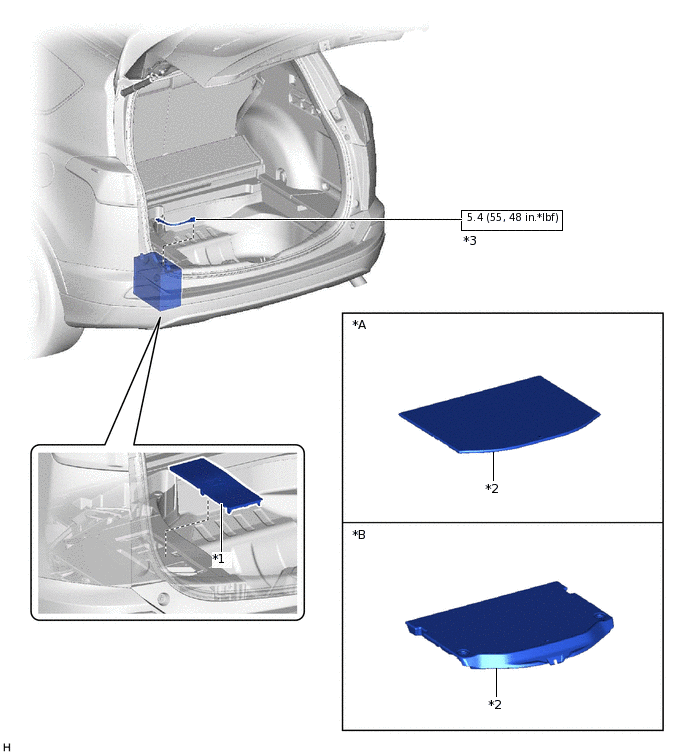

ILLUSTRATION
*A |
w/o Spare Tire, for Compact Spare Tire |
*B |
for Full Size Spare Tire |
*1 |
BATTERY SERVICE COVER |
*2 |
DECK BOARD ASSEMBLY |
*3 |
NEGATIVE AUXILIARY BATTERYTERMINAL |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

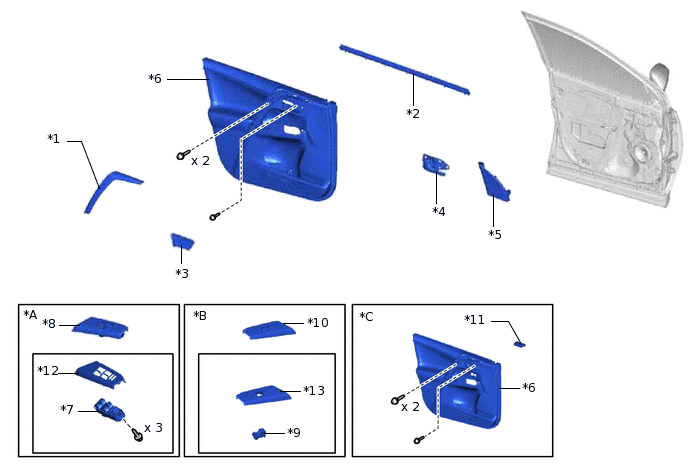

ILLUSTRATION
*A |
for Driver Side |
*B |
for Front Passenger Side |
*C |
w/ Seat Memory Switch |
- |
- |
*1 |
FRONT DOOR ASSIST GRIP COVER LH |
*2 |
FRONT DOOR INNER GLASS WEATHERSTRIP LH |
*3 |
FRONT DOOR INSIDE HANDLE BEZEL PLUG LH |
*4 |
FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY LH |
*5 |
FRONT DOOR LOWER FRAME BRACKET GARNISH LH |
*6 |
FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH |
*7 |
POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY |
*8 |
POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL |
*9 |
POWER WINDOW REGULATOR SWITCH ASSEMBLY |
*10 |
POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL |
*11 |
FRONT UPPER ARMREST BASE PANEL LH |
*12 |
FRONT UPPER ARMREST BASE PANEL RH |

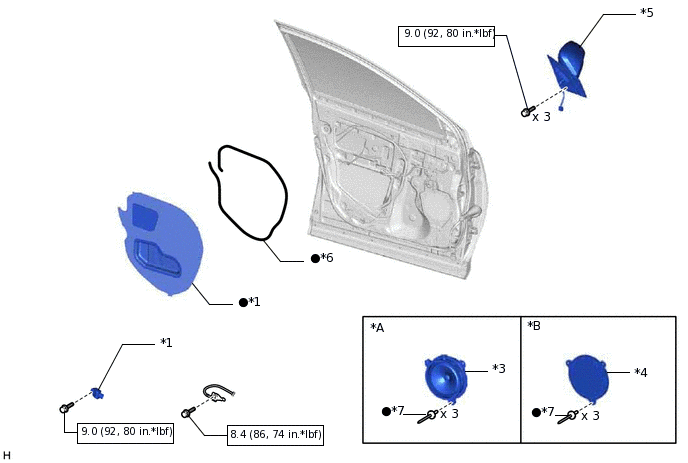

ILLUSTRATION
*A |
w/ Front No. 1 Speaker |
*B |
w/o Front No. 1 Speaker |
*1 |
DOOR SIDE AIRBAG SENSOR LH |
*2 |
FRONT DOOR SERVICE HOLE COVER LH |
*3 |
FRONT NO. 1 SPEAKER ASSEMBLY |
*4 |
FRONT SPEAKER COVER |
*5 |
OUTER REAR VIEW MIRROR ASSEMBLY LH |
*6 |
BUTYL TAPE |
*7 |
RIVET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

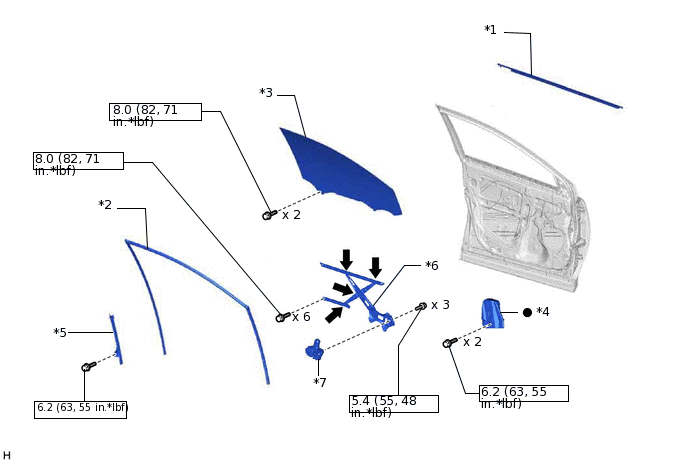

ILLUSTRATION
*1 |
FRONT DOOR BELT MOULDING ASSEMBLY LH |
*2 |
FRONT DOOR GLASS RUN LH |
*3 |
FRONT DOOR GLASS SUB-ASSEMBLY LH |
*4 |
FRONT DOOR NO. 2 STIFFENER CUSHION |
*5 |
FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY LH |
*6 |
FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY LH |
*7 |
POWER WINDOW REGULATOR MOTOR ASSEMBLY LH |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
MP grease |
- |
- |

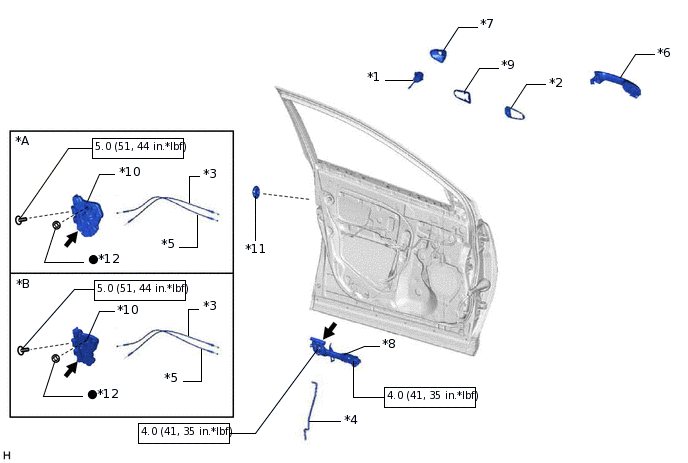

ILLUSTRATION
*A |
w/ Double Locking System |
*B |
w/o Double Locking System |
*1 |
DOOR LOCK CYLINDER LH |
*2 |
FRONT DOOR FRONT OUTSIDE HANDLE PAD |
*3 |
FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY LH |
*4 |
FRONT DOOR LOCK OPEN ROD LH |
*5 |
FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH |
*6 |
FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH |
*7 |
FRONT DOOR OUTSIDE HANDLE COVER LH |
*8 |
FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH |
*9 |
FRONT DOOR REAR OUTSIDE HANDLE PAD |
*10 |
FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH |
*11 |
HOLE PLUG |
*12 |
DOOR LOCK WIRING HARNESS SEAL |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
MP grease |
- |
- |

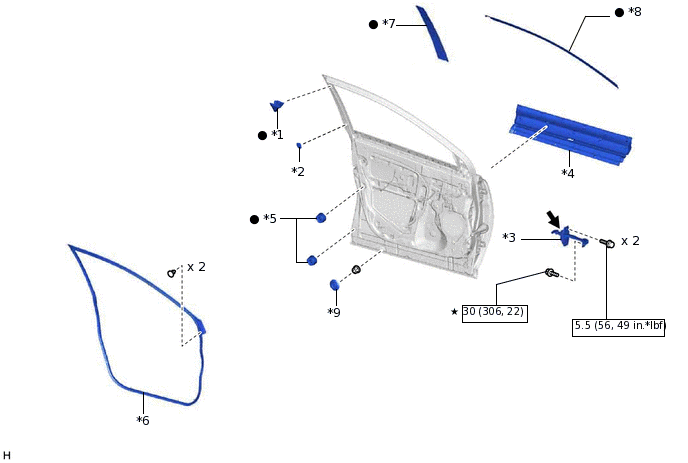

ILLUSTRATION
*1 |
DOOR FRAME GARNISH LH |
*2 |
DOOR WINDOW FRAME MOULDING CLIP |
*3 |
FRONT DOOR CHECK ASSEMBLY LH |
*4 |
FRONT DOOR LOWER OUTSIDE MOULDING LH |
*5 |
FRONT DOOR PANEL CUSHION |
*6 |
FRONT DOOR WEATHERSTRIP LH |
*7 |
FRONT DOOR WINDOW REAR FRAME MOULDING LH |
*8 |
NO. 1 BLACK OUT TAPE LH |
*9 |
HOLE PLUG |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
MP grease |
★ |
Precoated part |
