BACK DOOR GLASS REMOVAL

PROCEDURE

1. REMOVE BACK DOOR CENTER GARNISH

   Click here

2. REMOVE BACK DOOR SIDE GARNISH LH

   Click here

3. REMOVE BACK DOOR SIDE GARNISH RH

   Click here

4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

   Click here

5. REMOVE REAR SPOILER

   Click here

6. REMOVE REAR WIPER ARM COVER

   Click here

7. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

   Click here

8. REMOVE NO. 1 REAR WIPER LINK PIVOT WASHER

   Click here

9. REMOVE REAR WIPER MOTOR ASSEMBLY

   Click here

10. REMOVE BACK DOOR GLASS

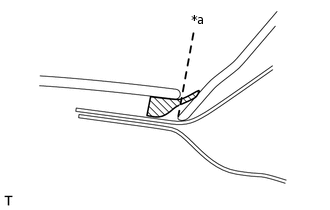

    1.

       *a

       Cut

       Using a knife, cut off the moulding as shown in the illustration.

       Tip:

       Do not damage the body with the knife.

    2. Remove the remaining moulding.

    3. Disconnect the rear window defogger connector.

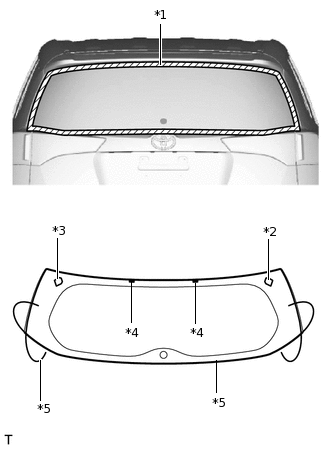

    4.

       *1	Protective Tape
       *2	No. 1 Window Glass Spacer
       *3	No. 2 Window Glass Spacer
       *4	Back Door Glass Spacer
       *5	Piano Wire

       Apply protective tape to the outer surface of the vehicle body to prevent scratches.

       Note:

       When separating the back door glass from the vehicle, be careful not to damage the vehicle paint or interior/exterior ornaments.

    5. From the interior, insert a piano wire between the vehicle body and back door glass as shown in the illustration.

    6. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

    7.

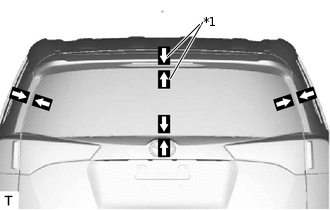

       *1

       Matchmark

       Place matchmarks over the glass and vehicle body at the locations indicated in the illustration.

       Tip:

       Matchmarks do not need to be placed if the glass is not going to be reused.

    8. Cut through the adhesive by pulling the piano wire around the back door glass.

       Note:

       Leave as much adhesive on the vehicle body as possible when removing the back door glass.

    9. Using suction cups, remove the back door glass.

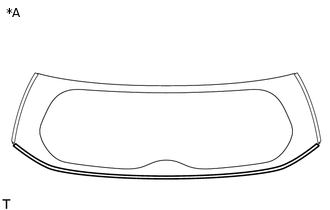

11. REMOVE BACK WINDOW LOWER MOULDING



    *A

    Back Side

    1. When reusing the back door glass:

       1. Using a scraper, remove the back door window lower moulding.

          Note:

          • Be careful not to damage the back door glass.

          • Be sure to replace the back door window lower moulding with a new one.

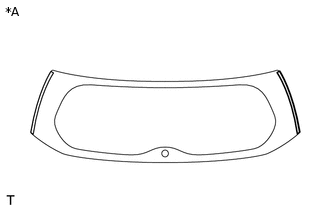

12. REMOVE BACK WINDOW OUTSIDE MOULDING LH



    *A

    Back Side

    1. When reusing the back door glass:

       1. Using a scraper, remove the back door window outside moulding LH.

          Note:

          • Be careful not to damage the back door glass.

          • Be sure to replace the back door window outside moulding LH with a new one.

13. REMOVE BACK WINDOW OUTSIDE MOULDING

    Tip:

    Use the same procedure described for the LH side.

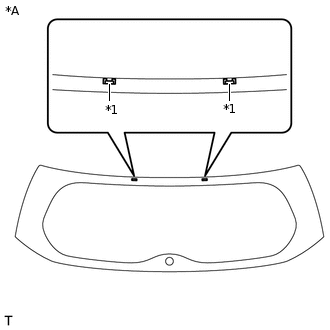

14. REMOVE BACK DOOR GLASS SPACER

    1. When reusing the back door glass:

       1.

          *A	Back Side
          *1	Back Door Glass Spacer

          Using a scraper, remove the back door glass spacer.

          Note:

          • Be careful not to damage the back door glass.

          • Be sure to replace the back door glass spacer with a new one.

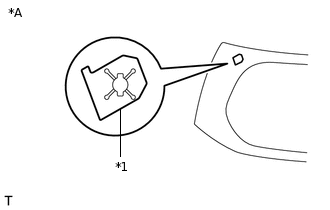

15. REMOVE NO. 1 BACK DOOR GLASS SPACER

    1. When reusing the back door glass:

       1.

          *A	Back Side
          *1	Back Door Glass Spacer

          Using a scraper, remove the No. 1 back door glass spacer.

          Note:

          • Be careful not to damage the back door glass.

          • Be sure to replace the No. 1 back door glass spacer with a new one.

16. REMOVE NO. 2 BACK WINDOW GLASS SPACER

    Tip:

    Use the same procedure described for the other side.

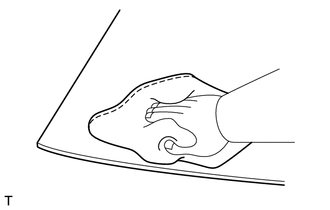

17. CLEAN BACK DOOR GLASS



    1. Clean the outer edge of the back door glass with non-residue solvent.

       Note:

       • Do not touch the back door glass surface after cleaning it.

       • Be careful not to damage the glass.

       • Even if using a new back door glass, clean the back door glass with non-residue solvent.

18. CLEAN VEHICLE BODY

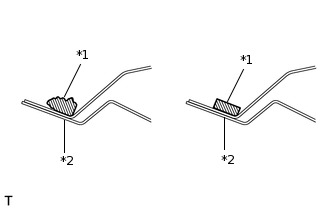

    *1	Adhesive
    *2	Vehicle Body

    1. Using a scraper, remove the moulding and adhesive from the back door glass.

    2. Clean and shape the contact surface of the vehicle body.

       1. On the contact surface of the vehicle body, use a knife to cut away excess adhesive as shown in the illustration.

          Tip:

          Leave as much adhesive on the vehicle body as possible.

          Note:

          Be careful not to damage the vehicle body.

       2. Clean the contact surface of the vehicle body with cleaner.

          Tip:

          Even if all the adhesive has been removed, clean the vehicle body.
