FRONT SEAT ASSEMBLY(for Manual Seat) DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

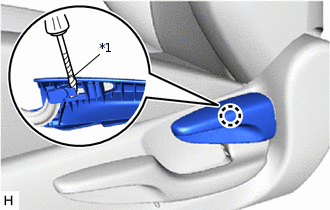

    1. B338227C01

      *1

      Protective Tape

      Using a screwdriver, detach the claw to remove the reclining adjuster release handle LH.

      Tip:

      Tape the screwdriver tip before use.

  2. REMOVE VERTICAL ADJUSTING HANDLE LH (for Driver Side)

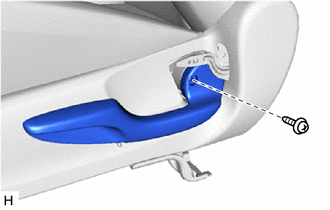

    1. B338228

      Remove the screw and vertical adjusting handle LH.

  3. REMOVE FRONT SEAT CUSHION SHIELD LH (for Driver Side)

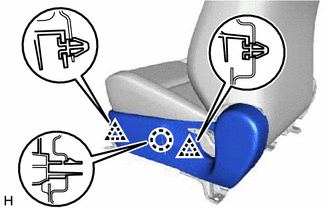

    1. B338229

      Detach the 2 clips and claw.

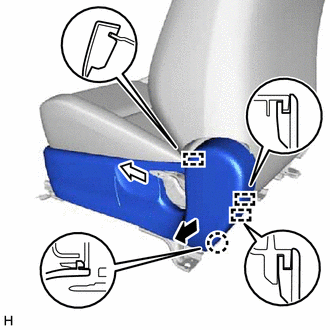

    2. B338230C01
      V100135

      First
      V100136

      Second

      Detach the claw and 3 guides to remove the front seat cushion shield LH as indicated by the arrows in the order shown in the illustration.

  4. REMOVE FRONT SEAT CUSHION SHIELD RH (for Front Passenger Side)

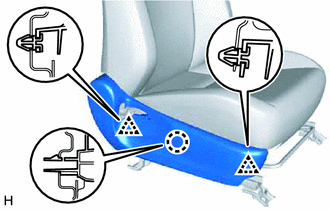

    1. B342791

      Detach the 2 clips and claw.

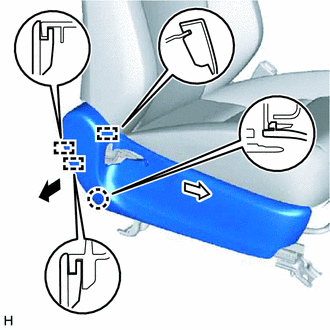

    2. B342792C01
      V100135

      First
      V100136

      Second

      Detach the claw and 3 guides to remove the front seat cushion shield RH as indicated by the arrows in the order shown in the illustration.

  5. REMOVE FRONT INNER SEAT CUSHION SHIELD LH (for Driver Side)

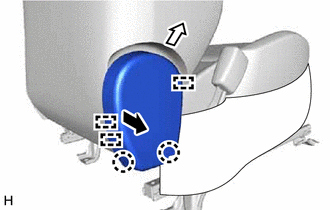

    1. B338231C01
      V100135

      First
      V100136

      Second

      Detach the 2 claws and 3 guides to remove the front inner seat cushion shield LH as indicated by the arrows in the order shown in the illustration.

  6. REMOVE FRONT INNER SEAT CUSHION SHIELD RH (for Front Passenger Side)

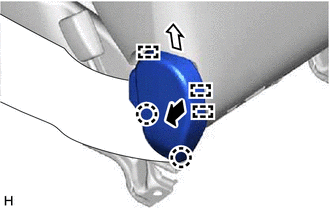

    1. B338254C01
      V100135

      First
      V100136

      Second

      Detach the 2 claws and 3 guides to remove the front inner seat cushion shield RH as indicated by the arrows in the order shown in the illustration.

  7. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

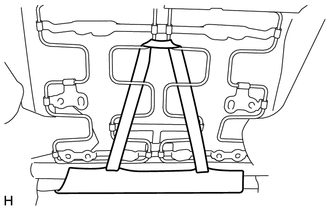

    1. B338232

      Disconnect the rubber band.

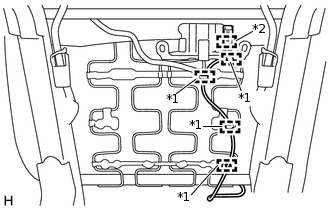

    2. B338249C02

      *1

      Wire Harness Clamp

      *2

      Connector Clamp

      Detach the 4 wire harness clamps and connector clamp.

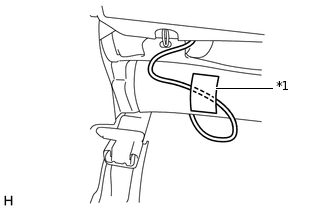

    3. B340391C01

      *1

      Fastener

      Detach the fastener to disconnect the wire harness of the front seat airbag assembly LH.

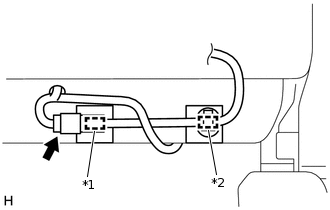

    4. B340392C01

      *1

      Connector Clamp

      *2

      Wire Harness Clamp

      w/ Seat Heater System:

      1. Detach the connector clamp and wire harness clamp.

      2. Disconnect the connector.

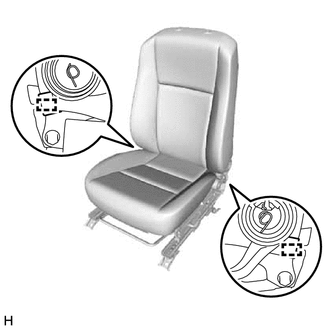

    5. B338235

      Detach the 2 hooks.

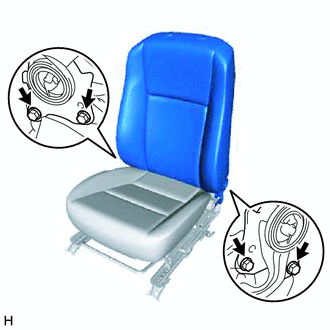

    6. B338236

      Remove the 4 bolts and separate type front seatback assembly.

  8. REMOVE FRONT SEAT HEADREST SUPPORT

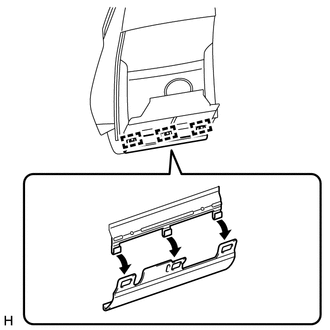

    1. B452622

      Detach the 3 hooks.

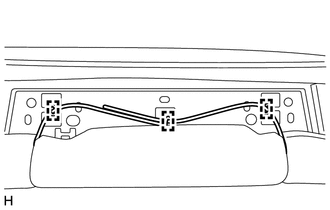

    2. B338239

      Remove the 3 hog rings.

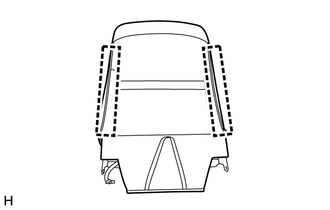

    3. B343094

      Open the 2 fasteners.

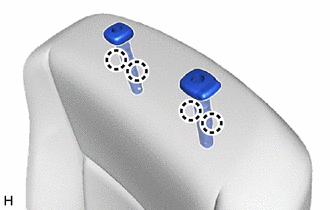

    4. B338237

      Detach the 4 claws to remove the 2 front seat headrest supports.

  9. REMOVE SEPARATE TYPE FRONT SEATBACK COVER

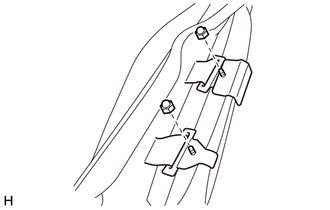

    1. B345043

      for Dual Type:

      1. Remove the 2 nuts.

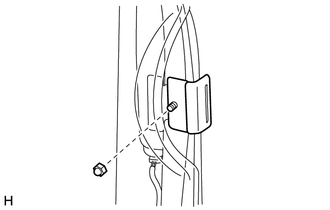

    2. B345042

      for Single Type:

      1. Remove the nut.

    3. Pull the separate type front seatback cover bracket from the separate type front seatback pad.

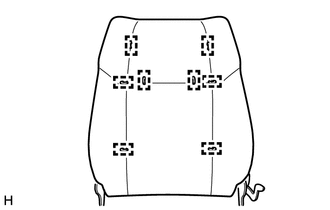

    4. B433028

      Remove the 8 hog rings and separate type front seatback cover from the separate type front seatback pad.

  10. REMOVE FRONT SEATBACK HEATER ASSEMBLY LH (w/ Seat Heater System)

    Click here

  11. REMOVE SEPARATE TYPE FRONT SEATBACK PAD

    1. Remove the separate type front seatback pad from the separate type front seatback spring assembly LH.

  12. REMOVE SEATBACK FELT

    1. Remove the seatback felt from the separate type front seatback spring assembly LH.

  13. REMOVE FRONT SEAT AIRBAG ASSEMBLY LH

    Click here

  14. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

    1. w/ Seat Heater System:

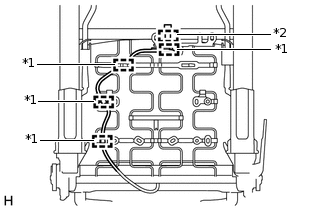

      1. B339911C01

        *1

        Wire Harness Clamp

        *2

        Connector Clamp

        Detach the 4 wire harness clamps and connector clamp to disconnect the wire harness of the front seat cushion heater.

    2. for Driver Side:

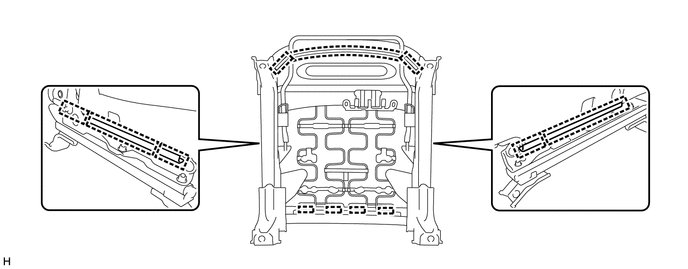

      1. Detach the 12 hooks to remove the separate type front seat cushion cover with pad.

        B338248

    3. for Front Passenger Side:

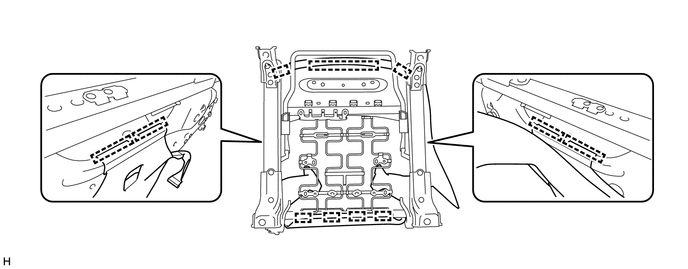

      1. Detach the 11 hooks to remove the separate type front seat cushion cover with pad.

        B342808

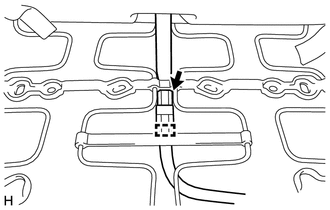

      2. B338247

        w/ Occupant Detection Sensor:

        Detach the clamp and disconnect the connector.

  15. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

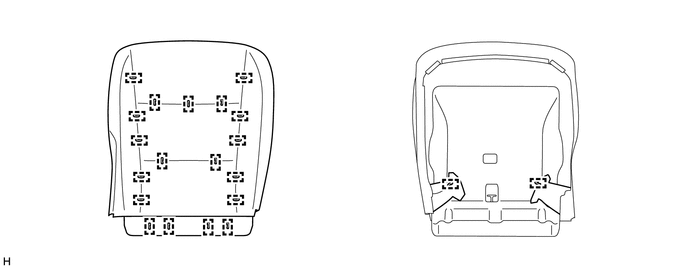

    1. Remove the 21 hog rings and separate type front seat cushion cover from the separate type front seat cushion pad.

      B340407

  16. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY LH (w/ Seat Heater System)

    Click here

  17. REMOVE FRONT SEAT AIRBAG SUB-ASSEMBLY RH (for Front Passenger Side, w/ Occupant Classification System)

    Click here

  18. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

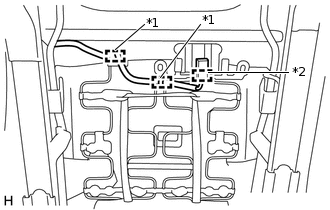

    1. B338234C02

      *1

      Wire Harness Clamp

      *2

      Connector Clamp

      Detach the 2 wire harness clamps and connector clamp.

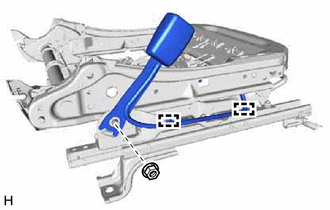

    2. B338233

      Detach the 2 clamps.

    3. Remove the nut and front seat inner belt assembly LH.

    4. Remove the seat belt anchor plate.

  19. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

    1. w/o Occupant Classification System:

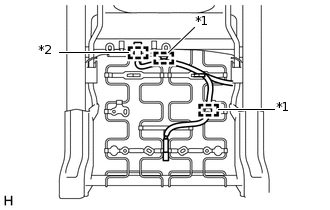

      1. B439089C01

        *1

        Wire Harness Clamp

        *2

        Connector Clamp

        Detach the 2 wire harness clamps and connector clamp.

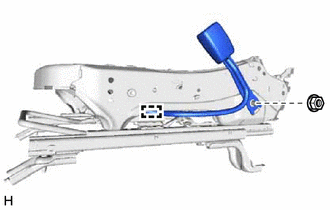

      2. B387953

        Detach the clamp.

      3. Remove the nut and front seat inner belt assembly RH.

    2. w/ Occupant Classification System:

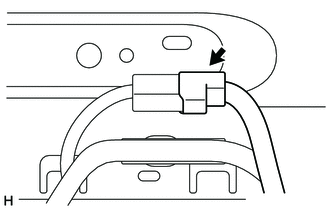

      1. B380450

        Disconnect the connector.

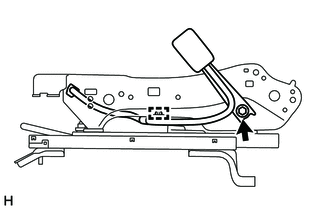

      2. B384523

        Detach the clamp.

      3. Remove the nut and front seat inner belt assembly RH.

    3. Remove the seat belt anchor plate.

  20. REMOVE FRONT SEAT WIRE RH (for Front Passenger Side, w/ Occupant Classification System)

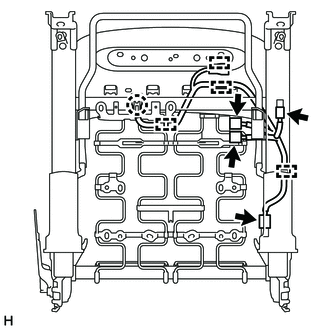

    1. B384524

      Detach the claw to disconnect the connector.

    2. Disconnect the 4 connectors.

    3. Detach the 4 clamps to remove the front seat wire RH.

  21. REMOVE OCCUPANT DETECTION ECU (for Front Passenger Side, w/ Occupant Classification System)

    Click here

  22. REMOVE FRONT LOWER SEAT CUSHION SHIELD LH

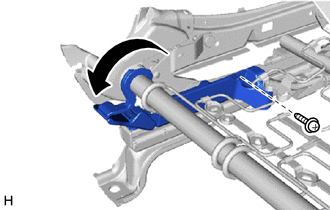

    1. B338241

      Remove the screw.

    2. Detach the hook in the direction indicated by the arrow in the illustration.

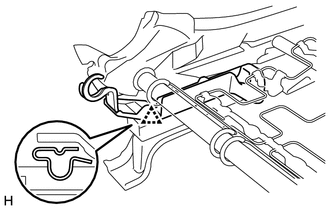

    3. B339913

      Detach the clip to remove the front lower seat cushion shield LH.

  23. REMOVE FRONT LOWER SEAT CUSHION SHIELD RH

    Tip:

    Use the same procedure described for the front lower seat cushion shield LH.

  24. REMOVE FRONT OUTER SEAT CUSHION EDGE PROTECTOR LH

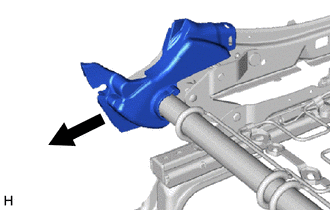

    1. B338242

      Remove the front outer seat cushion edge protector LH in the direction indicated by the arrow in the illustration.

  25. REMOVE FRONT INNER SEAT CUSHION EDGE PROTECTOR LH

    Tip:

    Use the same procedure described for the front outer seat cushion edge protector LH.

  26. REMOVE FRONT OUTER SEAT CUSHION EDGE PROTECTOR RH (for Front Passenger Side)

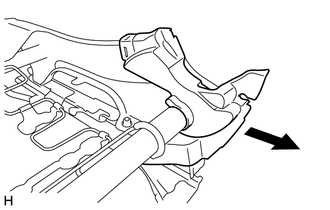

    1. B339914

      Remove the front outer seat cushion edge protector RH in the direction indicated by the arrow in the illustration.

  27. REMOVE FRONT INNER SEAT CUSHION EDGE PROTECTOR RH (for Front Passenger Side)

    Tip:

    Use the same procedure described for the front seat outer cushion edge protector RH.

  28. REMOVE SEAT TRACK ADJUSTING HANDLE

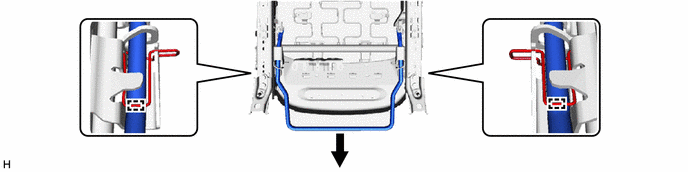

    1. Detach the 2 hooks to remove the seat track adjusting handle in the direction indicated by the arrow in the illustration.

      B338243

  29. REMOVE SEAT ADJUSTER COVER CAP

    1. Remove the 2 seat adjuster cover caps from the separate type front seat cushion spring assembly LH.
