NAVIGATION SYSTEM / MULTI INFORMATION SYSTEM


  1. OUTLINE


    1. Light Emitting Diodes (LEDs) are used to provide mercury-free backlighting for the navigation receiver assembly. This reduces the burden on the environment and ensures brightness.

    2. An extension box, into which the navigation ECU is built, is used.

    3. Since the extension box is mounted under the radio and display receiver assembly, a navigation system that supports flash Solid State Drive (SSD) type map data media can be used.

    4. A fuel consumption screen is provided in consideration of the environment.

    5. Wi-Fi Communication


      1. A wireless LAN antenna is integrated in the radio and display receiver assembly, enabling Wi-Fi communication to a user's tethering-compatible cellular phone or mobile Wi-Fi router.

        Tech Tips


        • Wi-Fi communication may be unavailable depending on the vehicle conditions, surrounding conditions such as radio wave conditions around the radio and display receiver assembly, distance to the device or device conditions. In addition, during Wi-Fi communication, the communication may be cut or become unstable due to the conditions described above.

        • If a tethering-compatible cellular phone is already connected to the radio and display receiver assembly via Bluetooth, a connection via Wi-Fi communication is not available. To connect via Wi-Fi, cancel the Bluetooth connection and then establish a Wi-Fi connection.

          B0089O5E01
          *1 Radio and Display Receiver Assembly
          *2 Connection via Wi-Fi
          *3 Cellular Phone
          *4 Mobile Wi-Fi Router

  2. SPECIFICATION

    Multi-display 7.0-inch Wide Video Graphics Array (WVGA) TFT Display
    Extension Box (Navigation ECU) Manufacturer HARMAN BECKER AUTOMOTIVE SYSTEMS
    Gyro Sensor Piezoelectric Ceramic Element
    Map Data Media Extension Box (Navigation ECU)
    Language Supported Voice Guidance English, German, French, Flemish, Turkish, Ukrainian, Hungarian, Czech, Slovak, Romania, Italian, Spanish, Dutch, Norwegian, Swedish, Portuguese, Danish, Finnish, Polish, Greek and Russian
    Voice Recognition* English, German*, French*, Italian*, Spanish*, Dutch*, Swedish*, Portuguese*, Polish*, Czech*, Greek*, Danish*, Finnish*, Turkish* and Russian*

    • *: Models with extension box (high grade type)

  3. MAIN FEATURES


    1. Toyota Online (Models for Europe)


      1. The following services are available by connecting the navigation system to Toyota's portal site via the internet using a cellular phone.

      2. To use these Toyota online, Bluetooth registration and a portal account are required.

      3. To get a portal account, access the Toyota portal site (URL:www.my.toyota.eu).

      4. Available Toyota online are listed in the following table:

        Contents Outline
        Online Search New establishments, such as restaurants and bars, that are not registered in the navigation system can be set as a destination.
        Importing Memory Points Downloading via a cellular phone Establishments that were searched for using a personal computer can be set as a destination and can be registered as memory points.
        Downloading from a USB memory device
        Vehicle Customisation The vehicle equipment operation settings can be partially changed by remote operation via the Toyota portal site.
        Downloadable Applications New applications can be downloaded from the Toyota portal site* and installed to the radio and display receiver assembly via USB memory device. Using a Bluetooth connected cellular phone, information and update programs necessary for the application are accessible via the content provider of the application.

        *: For details about Toyota portal site, refer to www.my.toyota.eu.

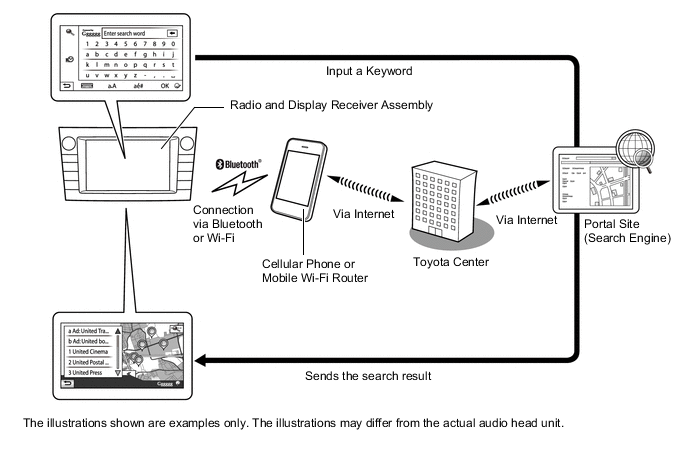

        Figure 1. Online Search Image

        B0089PCE01

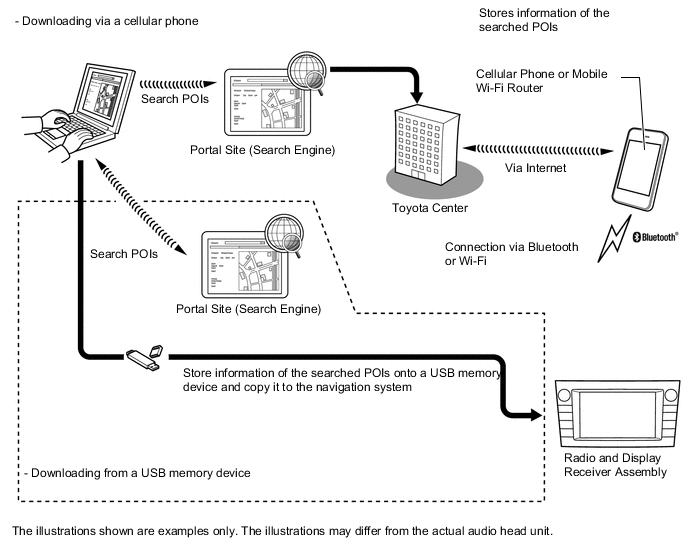

        Figure 2. Importing Memory Points Image

        B0089NOE01

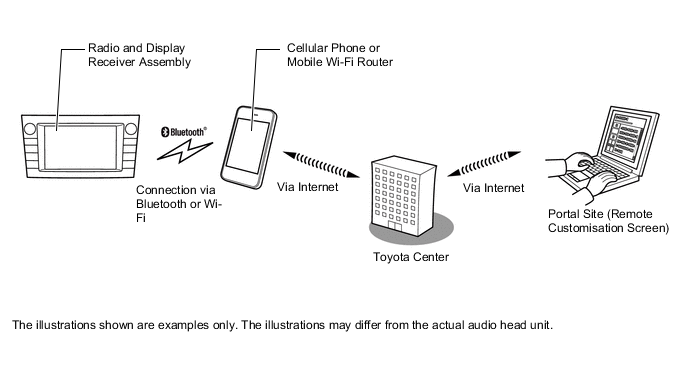

        Figure 3. Vehicle Customisation Image

        B0089O3E01

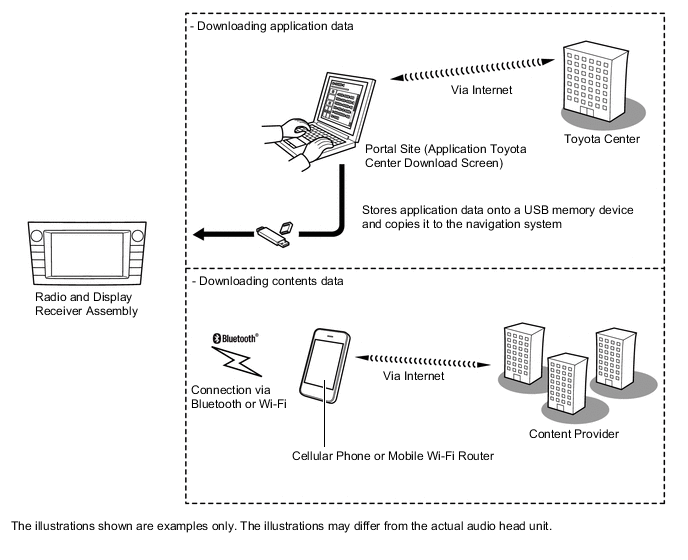

        Figure 4. Downloadable Applications Image

        B0089P2E01

    2. Voice Recognition System (Models with Extension Box (High Grade Type))


      1. When the voice recognition system starts operating, the commands that the system is able to recognize are displayed on the radio and display receiver assembly*.


        • *: Models with extension box (high grade type)

    3. The main functions of the radio and display receiver assembly (extension box) are listed below:

      Contents Outline
      Navigation System Through the use of the Global Positioning System (GPS) and map data stored on an extension box, the navigation system analyzes the position of the vehicle and indicates the current position on the map displayed on the screen. In addition, the user can use the system to register memory points and navigate to a destination.
      Audio/Video System

      Serves as the display and controls for the following operations:


      • Radio operation

      • Bluetooth-compatible portable audio player operation

      • iPod/iPhone operation

      • USB memory operation

      • Portable audio player operation (AUX type)
      Hands-free System When a Bluetooth-compatible cellular telephone is registered to the radio and display receiver assembly, the driver can make and receive calls or talk hands-free on the cellular telephone by operating the switches on the screen/steering pad.
      Parking Assist Monitor System (Models with Parking Assist Monitor System) Displays parking guide lines to assist the driver in parking the vehicle and the rear view of the vehicle that is captured by the television camera mounted on the back door when the shift lever is in R.
      Panoramic View Monitor System (Models with Panoramic View Monitor System) Displays a panoramic view on the multi display to provide the driver with an image of the area surrounding the vehicle.
      Monitor System (Models with Monitor System) Displays a view of the area behind the vehicle that is captured by the television camera mounted on the back door when the shift lever is moved to R.
      Vehicle Information Trip Information Screen Fuel consumption information such as average fuel consumption per minute is displayed.
      General Settings Language Selection The language of the screen buttons, pop-up messages and the voice guidance can be changed.
      Volume Settings

      • Navigation prompt volume (Nav): The user can adjust the volume of voice guidance.

      • Phone volume-incoming: The user can adjust the volume of incoming calls.

      • Phone volume-outgoing: The user can adjust the volume of outgoing calls.

      • Ringtone volume: The user can adjust the volume of the ringtone.
      Unit of Measurement Selection The user can change the unit of measure for distance.
      Beep Selection The user can sound beeps.
      Automatic Text Scrolling The user can set the automatic text scrolling on/off. This function is not available while driving.
      Backup Stored Contacts to USB The entries stored in the "Stored" list on the "My destinations" screen and "Contacts" screen can be transferred to a USB memory device.
      Restore Contact Backup from USB Backed-up data can be transferred from a USB memory device to the navigation system. Transferred entries will be stored in the "Stored" list on the "My Destinations" screen and "Contacts" screen.
      Delete All Personal Data The user can delete all personal data stored in this system.
      System Information Selection System Information Selection The user can display the system information and select the "Audio information" on the screen to switch the system information screen.
      Open Source Information Selection

      • The user can display open source information.

      • Notices related to third party software used in this product are enlisted. (This includes instructions for obtaining such software, where applicable.)
      Display Settings The brightness, contrast and day/night mode of the screen can be adjusted.
      Diagnosis

      This menu contains the following items:


      • Failure Diagnosis


        • System Check

        • Diagnosis Recorder

      • Function Check/Setting


        • Panel and Steering Switch

        • Microphone Check

        • Vehicle Signal

        • Touch Switch

        • System Sensor Check

        • DAB Reception Check

      • Service Information


        • Version Information

      • Product Information
