KNEE AIRBAG ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the driver side of RHD and LHD vehicles.

  • The procedures listed below are for the driver side of LHD vehicles.

PROCEDURE

  1. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    1. Check that the power switch is off.

    2. Check that the cable is disconnected from the negative (-) battery terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

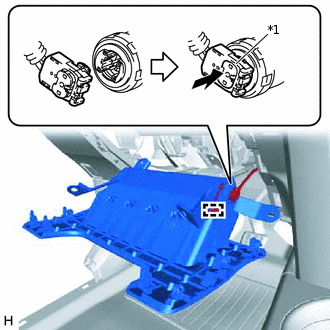

    3. B339303C01

      *1

      Connector Lock

      Connect the airbag connector to the lower No. 1 instrument panel airbag assembly.

      Note:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

    4. Push in the connector lock to install the airbag connector.

    5. Attach the clamp.

    6. Attach the 8 claws to install the lower No. 1 instrument panel airbag assembly.

    7. Install the 4 bolts.

      10 N*m

      102 kgf*cm

      7 ft.*lbf

      Note:

      Confirm that the lower No. 1 instrument panel airbag assembly is installed securely without any excessive gaps and is not protruding outward.

  2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Click hereClick here

  3. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  4. INSTALL BATTERY SERVICE COVER

    Click here

  5. INSTALL DECK BOARD ASSEMBLY

    Click here

  6. PERFORM DIAGNOSTIC SYSTEM CHECK

    Click here

  7. CHECK SRS WARNING LIGHT

    Click here
