AMPLIFIER ANTENNA INSTALLATION

PROCEDURE

  1. INSTALL ANTENNA COVER KIT

    1. When reusing the No. 1 amplifier antenna assembly:

      1. Install a new seal.

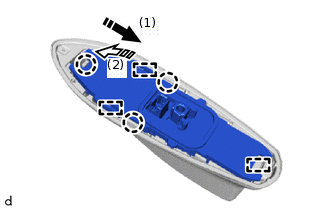

    2. E332829N01

      Attach the claws and guides to install the No. 1 amplifier antenna assembly as indicated by the arrows in the order shown in the illustration.

  2. INSTALL NO. 1 AMPLIFIER ANTENNA ASSEMBLY

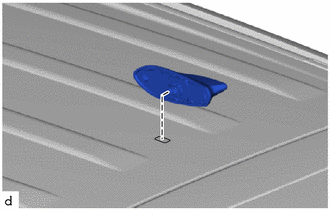

    1. E332830

      Temporarily install the No. 1 amplifier antenna assembly to the vehicle.

    2. E332825

      Insert the a new washer and holder to install the No. 1 amplifier antenna with the bolt.

      9.5 N*m

      97 kgf*cm

      84 in.*lbf

    3. E332824

      Connect the connector.

  3. INSTALL ROOF HEADLINING ASSEMBLY

    Click here

  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click hereClick hereClick here).

  5. INSTALL DECK BOARD ASSEMBLY

    Click here
