COMBINATION METER DISASSEMBLY

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

Note:

Do not allow any dirt (fingerprints, grease, etc.) to adhere to the meter glass. If the glass is dirty, wipe it clean with a soft cloth.

PROCEDURE

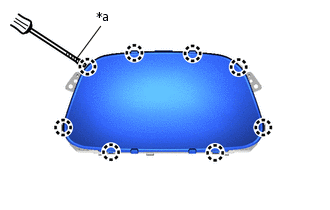

  1. REMOVE COMBINATION METER GLASS

    E341381C01

    *a

    Protective Tape

    1. Using a screwdriver, detach the 8 claws and remove the combination meter glass.

      Tip:

      Tape the screwdriver tip before use.
