FOG LIGHT ASSEMBLY DISASSEMBLY

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE FOG LIGHT BULB

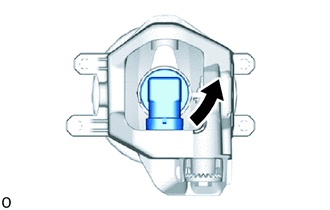

    E332609

    1. Turn the fog light bulb in the direction indicated by the arrow in the illustration to remove it from the fog light.

      Note:

      Do not touch the glass part of the bulb.
