INTAKE MANIFOLD REMOVAL

PROCEDURE

  1. REMOVE THROTTLE BODY ASSEMBLY

    Click here

  2. REMOVE VACUUM SENSOR (MANIFOLD ABSOLUTE PRESSURE SENSOR)

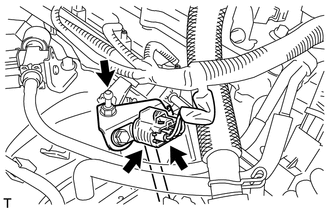

    1. A173115

      Disconnect the air hose and connector from the vacuum sensor (manifold absolute pressure sensor).

    2. Using a 10 mm deep socket wrench, remove the engine cover joint and vacuum sensor (manifold absolute pressure sensor).

  3. REMOVE INTAKE MANIFOLD

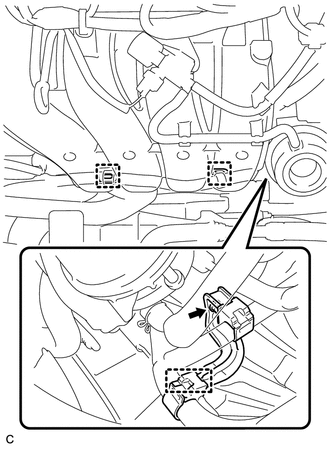

    1. A196362

      Disconnect the 3 clamps and wire harness.

    2. Remove the bolt and wire harness clamp bracket.

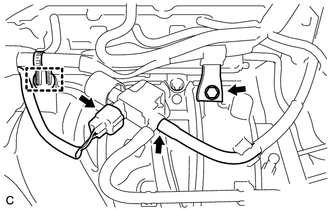

    3. A196363

      Remove the bolt and disconnect the wire harness clamp bracket.

    4. Disconnect the wire harness clamp, air hose and connector.

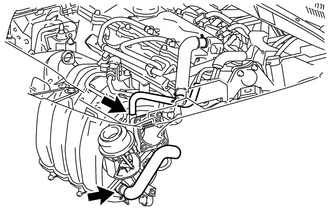

    5. A296111

      Disconnect the fuel vapor feed hose from the intake manifold.

    6. Slide the clip disconnect the ventilation hose from the intake manifold.

    7. A205676

      Remove the 5 bolts, 2 nuts, intake manifold and intake manifold stay.

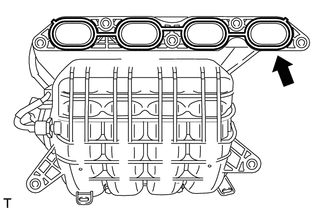

    8. A294418

      Remove the No. 1 intake manifold to head gasket from the intake manifold.

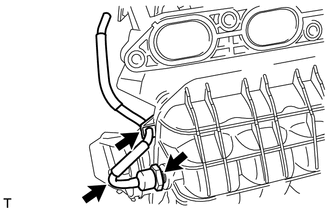

    9. A173122

      Disconnect the air hose from the gas filter and intake manifold.

    10. Using a 24 mm deep socket wrench, remove the gas filter.

    11. A216085

      Remove the engine cover joint from the intake manifold.

  4. REMOVE STUD BOLT (w/ Stud Bolt)

    Tip:

    If a stud bolt is deformed or the threads are damaged, replace it.

    1. A196364

      Using an E6 "TORX" socket wrench, remove the 2 stud bolts from the intake manifold.
