STEREO COMPONENT AMPLIFIER COMPONENTS
ILLUSTRATION
*A |
w/ Partition Net |
*B |
w/ Tonneau Cover |
*C |
w/o Spare Tire, for Compact Spare Tire |
*D |
for Full Size Spare Tire |
*1 |
DECK BOARD ASSEMBLY |
*2 |
PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY |
*3 |
REAR DECK TRIM COVER |
*4 |
REAR FLOOR FINISH PLATE |
*5 |
REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE |
*6 |
REAR NO. 2 FLOOR BOARD |
*7 |
TONNEAU COVER ASSEMBLY |
*8 |
REAR NO. 1 FLOOR BOARD |
ILLUSTRATION
*1 |
DECK TRIM SERVICE HOLE COVER |
*2 |
DECK TRIM SIDE PANEL ASSEMBLY RH |
*3 |
REAR DOOR OPENING TRIM WEATHERSTRIP RH |
*4 |
REAR DOOR SCUFF PLATE RH |
*5 |
TETHER ANCHOR SET BRACKET COVER |
*6 |
LUGGAGE HOLD BELT STRIKER ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

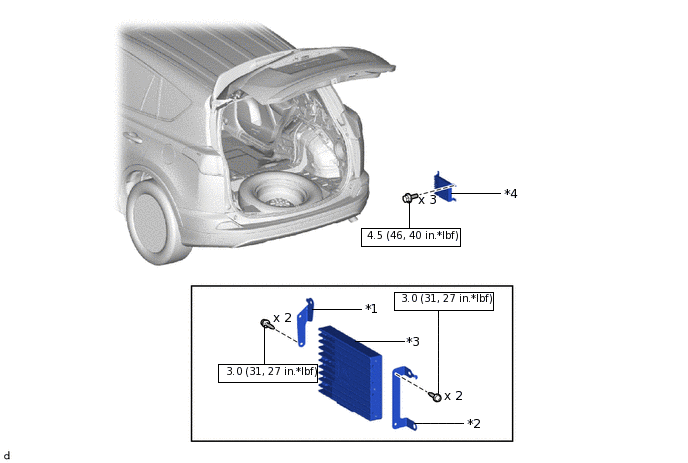

ILLUSTRATION
*1 |
NO. 1 AMPLIFIER BRACKET |
*2 |
NO. 2 AMPLIFIER BRACKET |
*3 |
STEREO COMPONENT AMPLIFIER ASSEMBLY |
*4 |
STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
