REAR DRIVE SHAFT ASSEMBLY INSPECTION

CAUTION / NOTICE / HINT

Note:

  • When using a vise, place aluminum plates between the part and vise.

  • When using a vise, do not overtighten it.

PROCEDURE

  1. INSPECT REAR DRIVE SHAFT ASSEMBLY

    1. Secure the rear drive shaft outboard joint shaft assembly in a vise.

      Note:

      • When using a vise, place aluminum plates between the part and vise.

      • When using a vise, do not overtighten it.

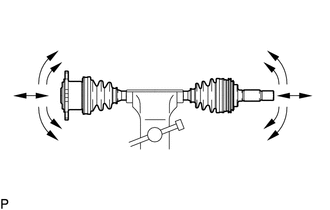

    2. C108512

      Check that there is no excessive play in the radial direction of the inboard joint and outboard joint.

    3. Check the inboard joint boot and outboard joint boot for damage.

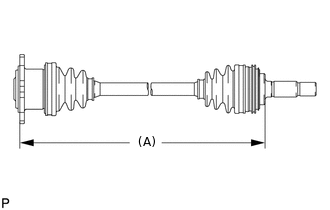

    4. C147198N04

      Check that the inboard joint boot and outboard joint boot are not stretched or contracted when the rear drive shaft assembly is at the standard length.

      Length (A)

      598.1 to 608.1 cm (1.97 to 1.99 ft.)

      Note:

      Keep the rear drive shaft assembly level during inspection.

      If the inboard joint boot and outboard joint boot are stretched or contracted, correct them.
