AIRBAG CUT-OFF INDICATOR LIGHT INSPECTION

PROCEDURE

  1. INSPECT AIRBAG CUT-OFF INDICATOR LIGHT (CLOCK ASSEMBLY) (for Hatchback, Wagon)

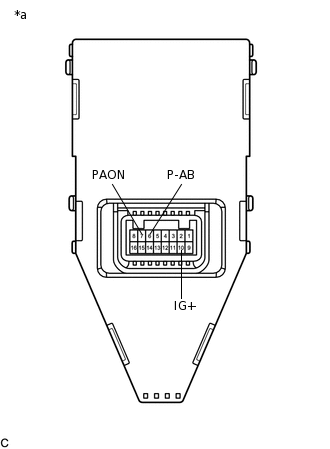

    1. C327665C01

      *a

      Component without harness connected

      (Airbag Cut-off Indicator Light (Clock Assembly))

      Apply battery voltage to the connector and check the airbag cut-off indicator light (clock assembly) condition.

      Result

      Connection

      Result

      Battery positive (+) - 10 (IG+)

      Battery negative (-) - 7 (PAON)

      "ON" comes on

      Battery positive (+) - 10 (IG+)

      Battery negative (-) - 6 (P-AB)

      "OFF" comes on

      If the result is not as specified, replace the airbag cut-off indicator light (clock assembly).

  2. INSPECT AIRBAG CUT-OFF INDICATOR LIGHT (TELLTALE LIGHT ASSEMBLY) (for Sedan)

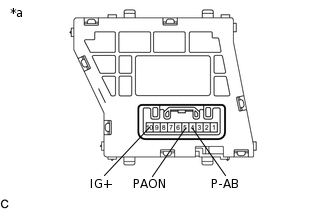

    1. C327666C01

      *a

      Component without harness connected

      (Airbag Cut-off Indicator Light (Telltale Light Assembly))

      Apply battery voltage to the connector and check the airbag cut-off indicator light (telltale light assembly) condition.

      Result

      Connection

      Result

      Battery positive (+) - 10 (IG+)

      Battery negative (-) - 5 (PAON)

      "ON" comes on

      Battery positive (+) - 10 (IG+)

      Battery negative (-) - 4 (P-AB)

      "OFF" comes on

      If the result is not as specified, replace the airbag cut-off indicator light (telltale light assembly).
