SPIRAL CABLE(for Dual Type) INSTALLATION

PROCEDURE

  1. INSTALL SPIRAL CABLE SUB-ASSEMBLY

    Note:

    • Do not replace the spiral cable sub-assembly with the battery connected and the power switch on (IG).

    • Do not rotate the spiral cable sub-assembly with the battery connected and the power switch on (IG).

    • Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.

    1. Check that the power switch is off.

    2. Check that the cable is disconnected from the auxiliary battery negative (-) terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

    3. Check that the front wheels are facing straight ahead.

    4. Attach the 3 claws to install the spiral cable sub-assembly.

      Note:

      When replacing the spiral cable sub-assembly with a new one, remove the lock pin before installing the steering wheel assembly.

    5. Connect the connector to the spiral cable sub-assembly.

      Note:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

  2. INSTALL STEERING COLUMN COVER

    Click here

  3. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD

  4. ADJUST SPIRAL CABLE SUB-ASSEMBLY

    Note:

    Do not adjust the spiral cable with the battery connected and the power switch on (IG).

    1. Check that the power switch is off.

    2. Check that the cable is disconnected from the auxiliary battery negative (-) terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

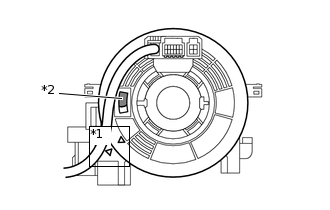

    3. B340954C02

      *1

      Alignment Mark

      *2

      Colored Roller (Yellow)

      Check if the spiral cable sub-assembly is centered.

      Tip:

      When the spiral cable sub-assembly is centered, the alignment marks are aligned and the colored roller (yellow) or flat cable shown in the illustration is visible.

    4. If the spiral cable sub-assembly is not centered, center it.

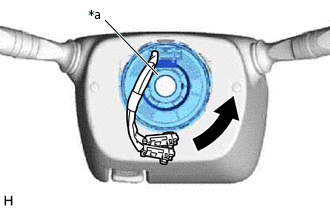

      1. B341171C02

        *a

        Interlock

        While pushing on the interlock indicated in the illustration, rotate the spiral cable sub-assembly counterclockwise slowly by hand until it stops.

        Note:

        • When rotating the spiral cable sub-assembly, make sure to push on the interlock indicated in the illustration to release the interlock mechanism.

        • Do not turn the spiral cable sub-assembly using the airbag wire harness.

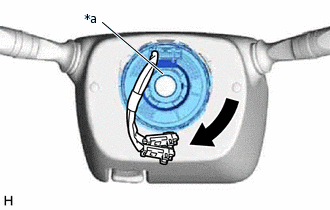

      2. B341172C02

        *a

        Interlock

        While pushing on the interlock indicated, rotate the spiral cable sub-assembly clockwise approximately 2.5 turns to the position where the colored roller (yellow) or flat cable is visible.

        Note:

        • When rotating the spiral cable sub-assembly, make sure to push on the interlock indicated in the illustration to release the interlock mechanism.

        • Do not turn the spiral cable sub-assembly using the airbag wire harness.

        Tip:

        The spiral cable will rotate approximately 2.5 turns to both the left and right from the center.

  5. INSTALL STEERING WHEEL ASSEMBLY

    Click here

  6. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick here

  7. INSTALL BATTERY SERVICE COVER

    Click here

  8. INSTALL DECK BOARD ASSEMBLY

    Click here

  9. PERFORM DIAGNOSTIC SYSTEM CHECK

    Click here

  10. CHECK SRS WARNING LIGHT

    Click here
