ELECTRICAL KEY OSCILLATOR(for Front Floor) REMOVAL

PROCEDURE

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

   Click here

2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

   Click here

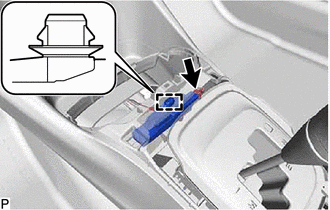

3. REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

   1.

      Disengage the clamp.

   2. Disconnect the connector to remove the No. 1 indoor electrical key antenna assembly.

      Note:

      Be careful when removing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.
