ACTIVE NOISE CONTROL MICROPHONE COMPONENTS
ILLUSTRATION
| *1 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY | *2 | NEGATIVE BATTERY TERMINAL |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

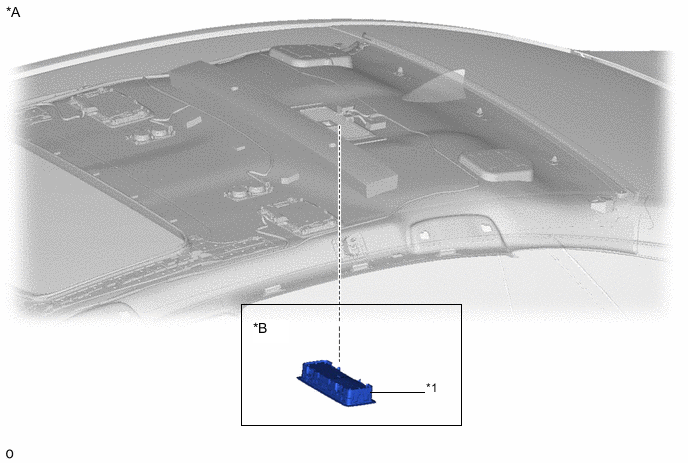

ILLUSTRATION
| *A | for Sliding Roof | *B | for Rear Side |
| *1 | ACTIVE NOISE CONTROL MICROPHONE (SPOT LIGHT ASSEMBLY) | - | - |

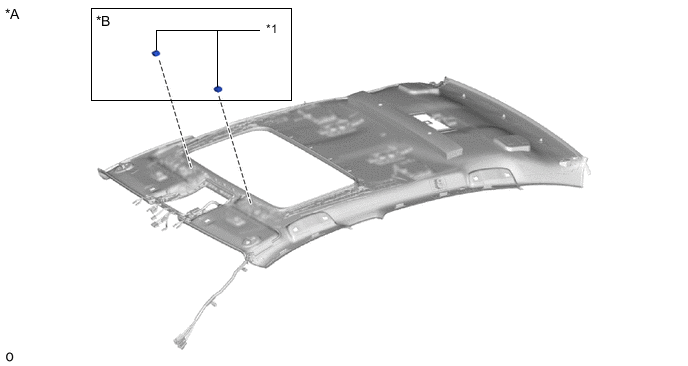

ILLUSTRATION
| *A | for Sliding Roof | *B | for Front Side |
| *1 | ACTIVE NOISE CONTROL MICROPHONE | - | - |

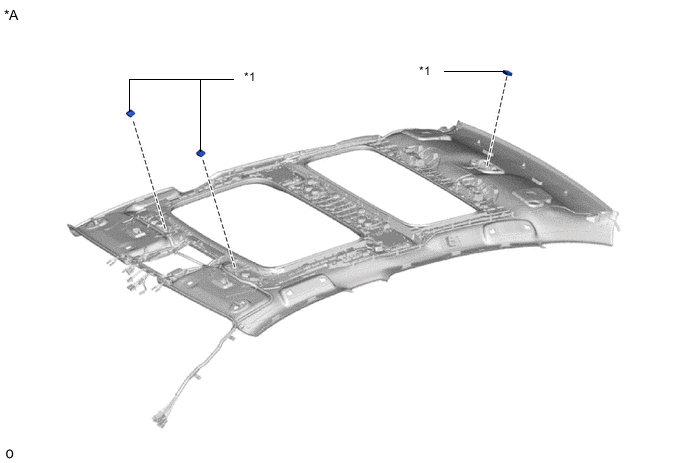

ILLUSTRATION
| *A | for Panoramic Moon Roof | - | - |
| *1 | ACTIVE NOISE CONTROL MICROPHONE | - | - |
