WIRELESS DOOR LOCK CONTROL SYSTEM(w/o Smart Entry and Start System) DIAGNOSIS SYSTEM


  1. SELF-DIAGNOSTIC MODE (USING GTS)


    1. Connect the GTS to the DLC3.

    2. Turn the ignition switch to ON.

    3. Turn the GTS on.

    4. Enter the following menus: Body Electrical / Main Body / Utility / Wireless Door Lock Diagnosis Mode.


      Body Electrical > Main Body > Utility
      Tester Display
      Wireless Door Lock Diagnosis Mode

    5. Proceed to the next step in accordance with the prompts on the GTS screen.

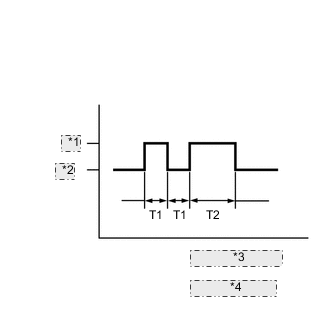

    6. B004K1LE81
      Wireless Door Lock Buzzer Output
      *1 ON
      *2 OFF
      *3 T1: 0.25 seconds
      *4 T2: 0.5 seconds

      Check that the system has switched to self-diagnostic mode by checking the wireless door lock buzzer output pattern.

    7. Inspect the diagnostic outputs when the door control transmitter module set sub-assembly switch is pressed. The diagnostic outputs can be checked by the wireless door lock buzzer output pattern.

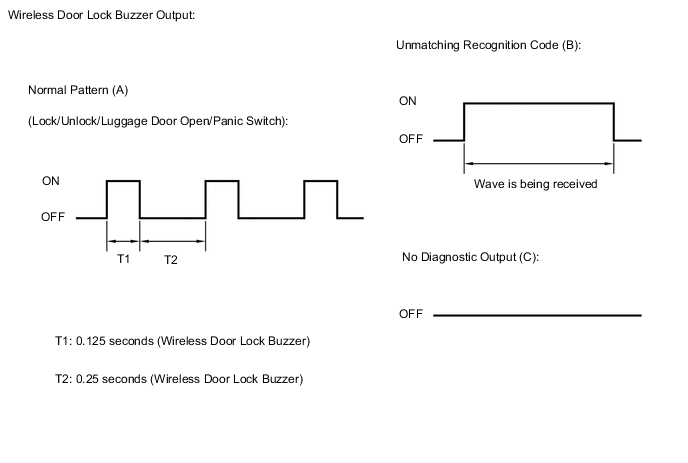

      B004MWQE48
      Result:
      Wireless Door Lock Buzzer Output Suspected Area
      A Normal (No malfunction)
      B Register wireless code
      C Wave interference or malfunction of a related component
