REAR LOWER ARM INSPECTION

PROCEDURE

  1. INSPECT REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

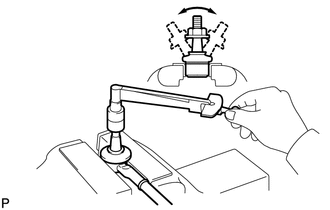

    C229152

    1. Inspect the turning torque of the ball joint.

      1. Install the installation nut to the ball joint stud.

      2. Move the stud back and forth 5 times. Using a torque wrench, turn the nut continuously at a rate of 2 to 4 seconds per turn and take the torque reading on the fifth turn.

        Standard turning torque

        0.5 to 3.4 N*m (5.1 to 34 kgf*cm, 4.5 to 30 in.*lbf)

        If the turning torque is not within the specified range, replace the rear No. 1 suspension arm with a new one.

    2. Check the dust boots for cracks or grease leakage.
