HEADLIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE FRONT BUMPER COVER

    Click here

  2. REMOVE HEADLIGHT ASSEMBLY LH

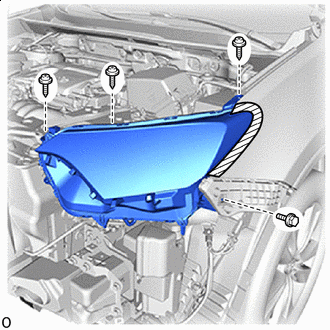

    E332593C01
    V100155

    Protective Tape

    1. Put protective tape around the headlight assembly LH.

    2. Remove the bolt and 3 screws.

    3. Disconnect each connector.

    4. Pull the headlight assembly LH towards the front of the vehicle to remove it.
