AIRBAG CUT-OFF SWITCH INSPECTION

PROCEDURE

  1. INSPECT AIRBAG CUTOFF SWITCH CYLINDER SUB-ASSEMBLY

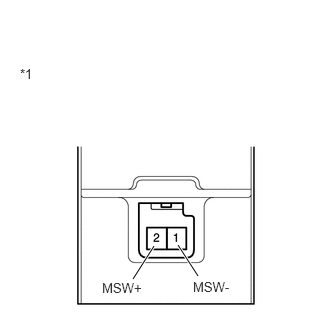

    1. C148932E10

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Switch Condition

      Specified Condition

      1 (MSW-) - 2 (MSW+)

      Cutoff switch On

      (OPEN)

      400 Ω

      Cutoff switch Off

      (CLOSE)

      100 Ω
      Table 1. Text in Illustration

      *1

      Component without harness connected

      (Airbag Cutoff Switch Cylinder Sub-assembly)

      If the result is not as specified, replace the airbag cutoff switch cylinder.
