СИСТЕМА СМАЗКИ


  1. OUTLINE


    1. The lubrication circuit is fully pressurized and all oil passes through an oil filter.

    2. A cycloid rotor type oil pump is used.

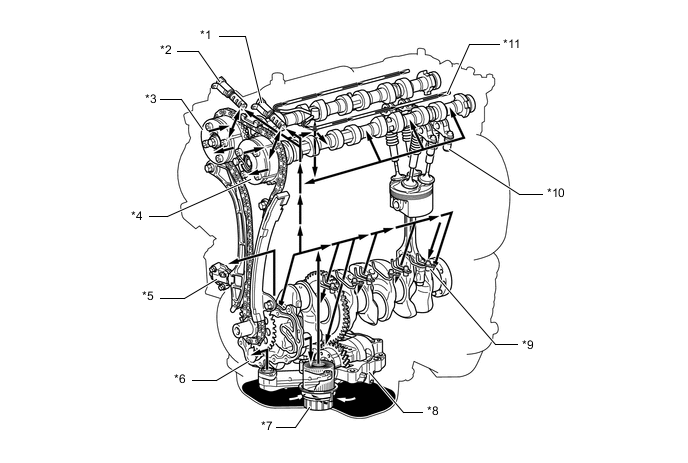

      A01IDKJC01
      *1 Camshaft Timing Oil Control Valve Assembly (Exhaust) *2 Camshaft Timing Oil Control Valve Assembly (Intake)
      *3 Camshaft Timing Gear Assembly *4 Camshaft Timing Exhaust Gear Assembly
      *5 No. 1 Chain Tensioner Assembly *6 Oil Pump
      *7 Oil Filter *8 Balance Shaft
      *9 Oil Nozzle Sub-assembly *10 Valve Lash Adjuster Assembly
      *11 Oil Delivery Pipe - -
