AIR CONDITIONING SYSTEM
| *A | Models with A25A-FKS Engine | *B | Models with 2GR-FKS Engine |
| *1 | AIR CONDITIONING PRESSURE SENSOR | *2 | COMPRESSOR WITH PULLEY ASSEMBLY |
| *3 | COMPRESSOR WITH PULLEY ASSEMBLY
|
*4 | ECM |
| *5 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
|
*6 | AMBIENT TEMPERATURE SENSOR (THERMISTOR ASSEMBLY) |
| *7 | COOLER CONDENSER ASSEMBLY | - | - |
| *a | The illustrations shown are examples only. | - | - |
| *1 | COOLER CONTROL SWITCH ASSEMBLY | - | - |
| *a | The illustrations shown are examples only. | - | - |
Figure 1. LHD Models

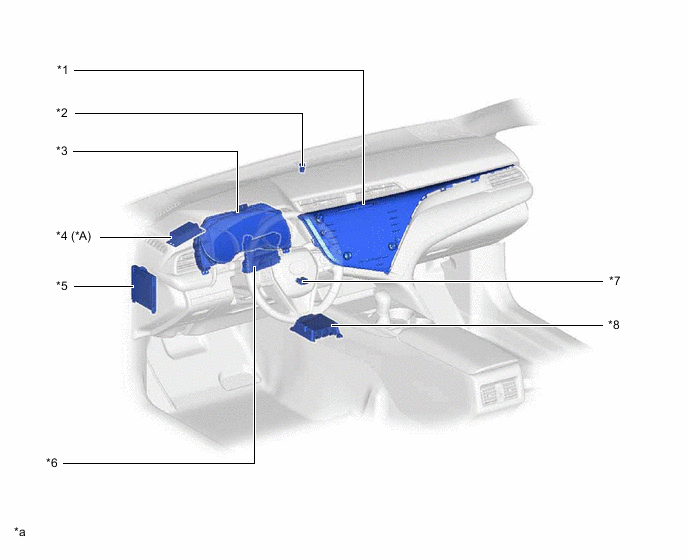

| *A | Models with Ion Generator | - | - |
| *1 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | COMBINATION METER ASSEMBLY | *4 | ION GENERATOR |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | COOLER (ROOM TEMPERATURE SENSOR) THERMISTOR | *8 | AIRBAG SENSOR ASSEMBLY |
| *a | The illustrations shown are examples only. | - | - |

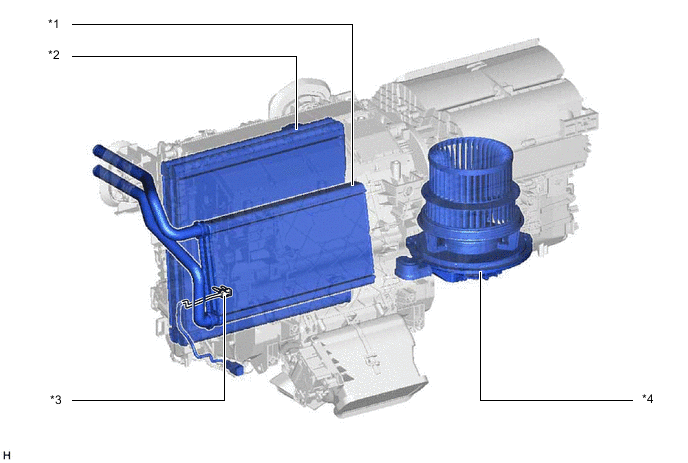

| *1 | HEATER RADIATOR UNIT SUB-ASSEMBLY | *2 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY |
| *3 | EVAPORATOR TEMPERATURE SENSOR (NO. 1 COOLER THERMISTOR) | *4 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY |
| *A | Models with 3-zone Control | - | - |
| *1 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *2 | NO. 3 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
| *3 | AIR CONDITIONING HARNESS ASSEMBLY | *4 | NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
| *5 | NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY | - | - |
Figure 2. RHD Models
| *A | Models with Audio System | *B | Models with Ion Generator |
| *C | Models without Audio System | - | - |
| *1 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | AIRBAG SENSOR ASSEMBLY | *6 | ION GENERATOR |
| *7 | COMBINATION METER ASSEMBLY | *8 | COOLER (ROOM TEMPERATURE SENSOR) THERMISTOR ASSEMBLY |
| *9 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY | *10 | AIR CONDITIONING CONTROL ASSEMBLY |
| *a | ECO Switch | *b | The illustrations shown are examples only. |
| *A | Models with Dual Air Layer Type Air Conditioning Unit | *B | Models with Single Air Layer Type Air Conditioning Unit |
| *1 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | *2 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY |
| *3 | HEATER RADIATOR UNIT SUB-ASSEMBLY | *4 | EVAPORATOR TEMPERATURE SENSOR (NO. 1 COOLER THERMISTOR) |
| *1 | NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY | *2 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
| *3 | AIR CONDITIONING HARNESS ASSEMBLY | *4 | NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
