AIRBAG SYSTEM(w/ Occupant Classification System), Diagnostic DTC:B1653/35

DTC Code DTC Name
B1653/35 Seat Position Airbag Sensor Circuit Malfunction

DESCRIPTION

The seat position airbag sensor circuit consists of the airbag sensor assembly and seat position airbag sensor.

DTC B1653/35 is stored when a malfunction is detected in the seat position airbag sensor circuit.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B1653/35

Seat Position Airbag Sensor Circuit Malfunction

  • One of the following conditions is met:

  • The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the seat position airbag sensor circuit for 2 seconds.

  • A seat position airbag sensor malfunction.

  • An airbag sensor assembly malfunction

  • No. 2 floor wire

  • Front seat inner belt assembly LH

  • Seat position airbag sensor

  • Airbag sensor assembly

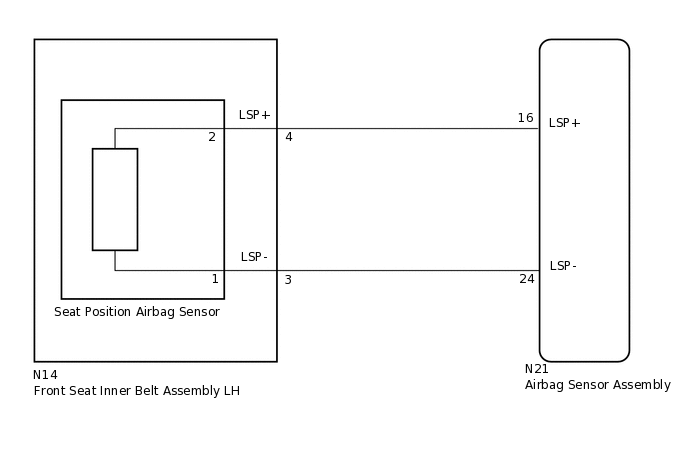

WIRING DIAGRAM

C253789E06

CAUTION / NOTICE / HINT

Note:

  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click hereClick hereClick hereClick here

  • When disconnecting the cable from the negative (-) auxiliary battery terminal while performing repairs, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  • After replacing the airbag sensor assembly, refer to initialization.

    Click hereClick hereClick here

PROCEDURE

  1. CHECK CONNECTION OF CONNECTORS

    1. Turn the power switch off.

    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.

    3. Check that the connectors are properly connected to the airbag sensor assembly and seat position airbag sensor.

    Result

    Proceed to

    Connectors are properly connected

    Connectors are not properly connected
    Connectors are not properly connected

    CONNECT CONNECTORS PROPERLY

    Connectors are properly connected

  2. CHECK CONNECTORS

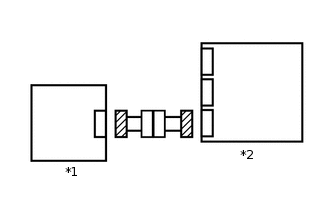

    1. C215011C01

      *1

      Seat Position Airbag Sensor

      *2

      Airbag Sensor Assembly

      Disconnect the connectors from the airbag sensor assembly and seat position airbag sensor.

    2. Check that the connectors (on the airbag sensor assembly side and seat position airbag sensor side) are not damaged.

      Click here

    Result

    Proceed to

    Connectors are not deformed or damaged

    Connectors are deformed or damaged
    Connectors are deformed or damaged

    REPLACE HARNESS AND CONNECTOR OR FRONT SEAT INNER BELT ASSEMBLY LH

    Connectors are not deformed or damaged

  3. CHECK SEAT POSITION AIRBAG SENSOR CIRCUIT

    1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

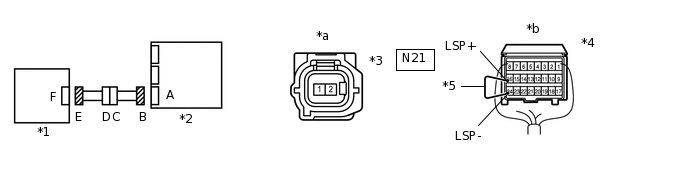

      C253252C02

      *1

      Seat Position Airbag Sensor

      *2

      Airbag Sensor Assembly

      *3

      Connector E

      *4

      Connector B

      *5

      Service Wire

      -

      -

      *a

      Front view of wire harness connector

      (to Seat Position Airbag Sensor)

      *b

      Rear view of wire harness connector

      (to Airbag Sensor Assembly)

    2. Turn the power switch to on (IG).

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection

      Switch Condition

      Specified Condition

      1 - Body ground

      Power switch on (IG)

      Below 1 V

      2 - Body ground

      Power switch on (IG)

      Below 1 V

    4. Turn the power switch off.

    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.

    6. Using a service wire, connect terminals 24 (LSP-) and 16 (LSP+) of connector B.

      Note:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 - 2

      Always

      Below 1 Ω

    8. Disconnect the service wire from connector B.

    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 - 2

      Always

      1 MΩ or higher

      1 - Body ground

      Always

      1 MΩ or higher

      2 - Body ground

      Always

      1 MΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    CHECK NO. 2 FLOOR WIREClick here

    OK

  4. CHECK SEAT POSITION AIRBAG SENSOR

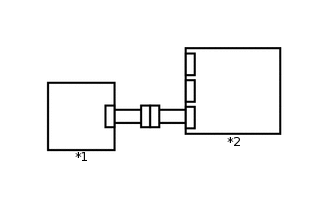

    1. C253253C01

      *1

      Seat Position Airbag Sensor

      *2

      Airbag Sensor Assembly

      Connect the connectors to the airbag sensor assembly and seat position airbag sensor.

    2. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

    3. Turn the power switch to on (IG), and wait for at least 60 seconds.

    4. Clear the DTCs.

      Click here

      Body Electrical > SRS Airbag > Clear DTCs

    5. Turn the power switch off.

    6. Turn the power switch to on (IG), and wait for at least 60 seconds.

    7. Check for DTCs.

      Click here

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Proceed to

      DTC B1653/35 is not output

      DTC B1653/35 is output
      Tip:

      Codes other than DTC B1653/35 may be output at this time, but they are not related to this check.

    DTC B1653/35 is not output

    USE SIMULATION METHOD TO CHECK

    Click here

    DTC B1653/35 is output

  5. CHECK SEAT POSITION AIRBAG SENSOR

    1. Turn the power switch off.

    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.

    3. Replace the seat position airbag sensor.

      Click here

      Tip:

      Perform the inspection using parts from a normal vehicle if possible.

    Result

    Proceed to

    NEXT
    NEXT

  6. CHECK AIRBAG SENSOR ASSEMBLY

    1. C253253C01

      *1

      Seat Position Airbag Sensor

      *2

      Airbag Sensor Assembly

      Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

    2. Turn the power switch to on (IG), and wait for at least 60 seconds.

    3. Clear the DTCs.

      Click here

      Body Electrical > SRS Airbag > Clear DTCs

    4. Turn the power switch off.

    5. Turn the power switch to on (IG), and wait for at least 60 seconds.

    6. Check for DTCs.

      Click here

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Proceed to

      DTC B1653/35 is not output

      DTC B1653/35 is output
      Tip:

      Codes other than DTC B1653/35 may be output at this time, but they are not related to this check.

    DTC B1653/35 is not output

    END (SEAT POSITION AIRBAG SENSOR WAS DEFECTIVE)

    DTC B1653/35 is output

    REPLACE AIRBAG SENSOR ASSEMBLY

    Click here

  7. CHECK NO. 2 FLOOR WIRE

    1. Disconnect the No. 2 floor wire connector from the front seat inner belt assembly LH.

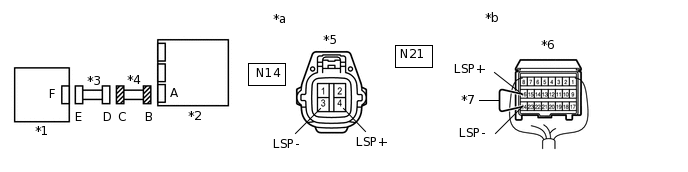

      C253254C02

      *1

      Seat Position Airbag Sensor

      *2

      Airbag Sensor Assembly

      *3

      Front Seat Inner Belt Assembly LH

      *4

      No. 2 Floor Wire

      *5

      Connector C

      *6

      Connector B

      *7

      Service Wire

      -

      -

      *a

      Front view of wire harness connector

      (to Front Seat Inner Belt Assembly LH)

      *b

      Rear view of wire harness connector

      (to Airbag Sensor Assembly)

    2. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

    3. Turn the power switch to on (IG).

    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection

      Switch Condition

      Specified Condition

      N14-4 (LSP+) - Body ground

      Power switch on (IG)

      Below 1 V

      N14-3 (LSP-) - Body ground

      Power switch on (IG)

      Below 1 V

    5. Turn the power switch off.

    6. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.

    7. Using a service wire, connect terminals 24 (LSP-) and 16 (LSP+) of connector B.

      Note:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      N14-4 (LSP+) - N14-3 (LSP-)

      Always

      Below 1 Ω

    9. Disconnect the service wire from connector B.

    10. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      N14-4 (LSP+) - N14-3 (LSP-)

      Always

      1 MΩ or higher

      N14-4 (LSP+) - Body ground

      Always

      1 MΩ or higher

      N14-3 (LSP-) - Body ground

      Always

      1 MΩ or higher

    Result

    Proceed to

    OK

    NG
    OK

    REPLACE FRONT SEAT INNER BELT ASSEMBLY LH

    Click here

    NG

    REPLACE NO. 2 FLOOR WIRE
