UNDER BODY REFERENCE VALUES THREE-DIMENSIONAL DISTANCE

Tech Tips


  • Measure points with the engine under cover removed.

  • In cases in which only one dimension is given, left and right are symmetrical.


  • For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).

Measuring Point Name
Symbol Name

Hole Diameter

mm (in.)
A, a Front Arm Plate Installation Bolt M14 (0.55)
B, b Sub Frame Installation Bolt M10 (0.39)
C, c Sub Frame Installation Bolt M10 (0.39)
D, d Front Side Member Standard Hole φ18 (0.71)

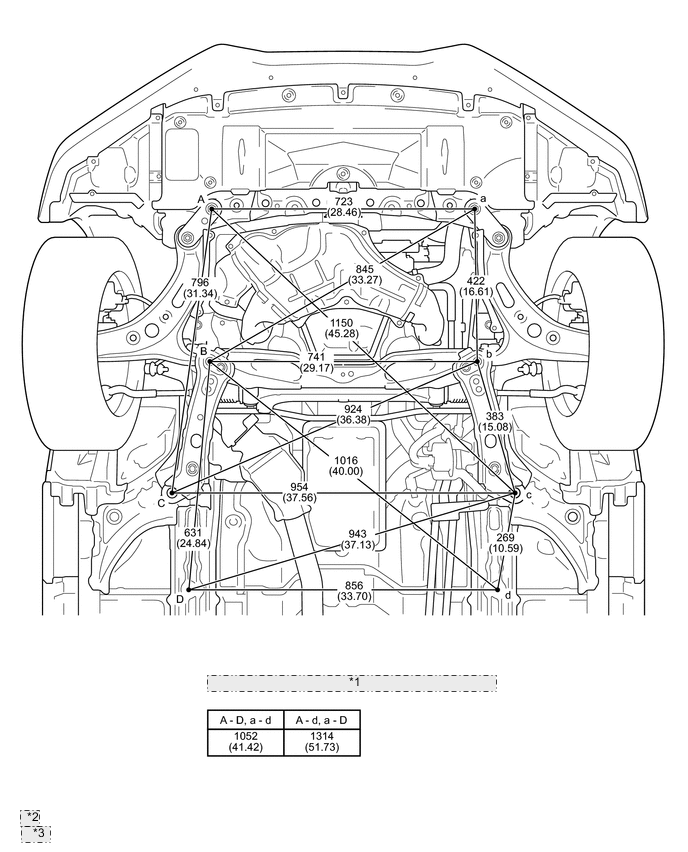

A004L03E01
*1 Distance between points other than those above
*2 mm
*3 (in.)
