INTAKE MANIFOLD INSTALLATION

CAUTION / NOTICE / HINT

Note

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE


  1. INSTALL VACUUM HOSE


    1. Install the vacuum hose to the intake manifold.

  2. INSTALL NO. 1 ENGINE COVER


    1. Install the No. 1 engine cover with the clip.

  3. INSTALL NO. 1 INTAKE MANIFOLD TO HEAD GASKET


    1. Install a new No. 1 intake manifold to head gasket to the intake manifold.

  4. INSTALL INTAKE MANIFOLD


    1. B00892GN01

      Temporarily install the intake manifold to the cylinder head sub-assembly with the 5 bolts.

    2. Tighten the 5 bolts in the order shown in the illustration.

      Torque:
      23 N*m  { 235 kgf*cm, 17 ft.*lbf }

  5. CONNECT NO. 2 FUEL VAPOR FEED HOSE


    1. Connect the No. 2 fuel vapor feed hose to the intake manifold.

  6. CONNECT NO. 3 WATER BY-PASS PIPE

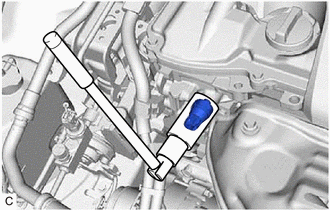

    1. Using an 8 mm socket wrench, connect the No. 3 water by-pass pipe to the intake manifold with the bolt.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

    2. Connect the No. 5 water by-pass hose to the No. 3 water by-pass pipe and slide the clip to secure it.

  7. INSTALL NO. 2 WATER BY-PASS PIPE


    1. B0085YNN01

      Temporarily install the No. 2 water by-pass pipe to the cylinder block sub-assembly with the bolt (B).

    2. Using an 8 mm socket wrench, temporarily install the No. 2 water by-pass pipe to the intake manifold with the 2 bolts (A).

    3. Tighten the bolt (B).

      Torque:
      21 N*m  { 214 kgf*cm, 15 ft.*lbf }

    4. Using the 8 mm socket wrench, tighten the 2 bolts (A).

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

  8. CONNECT ENGINE WIRE


    1. Engage the wire harness clamp to connect the engine wire.

    2. Install the bolt.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

  9. INSTALL E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

    Click here

  10. INSTALL EGR VALVE ASSEMBLY

    Click here

  11. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Click here

  12. INSTALL INLET AIR CLEANER ASSEMBLY

    Click here

  13. INSTALL COOL AIR INTAKE DUCT SEAL

    Click here
