TIRE AND WHEEL TYPE SYSTEM GENERAL GENERAL

  1. OUTLINE

    1. 2 sizes of tires, 2 type of steel wheels and 3 type of aluminum wheels are available.

    2. 2 types of wheel caps are available.

    3. A puncture repair kit is provided.

  2. SPECIFICATION

    1. Tire and Wheel

      Tire Size

      165/65R14

      Wheel

      Size

      14 X 4 1/2J

      Pitch Circle Diameter

      mm (in.)

      100 (3.9)

      Inset

      mm (in.)

      35 (1.3)

      Material

      Steel

      Wheel Cap

      Full Wheel Cap

      Wheel Design / Wheel Cap Design

      		 X116882

      Tire Size

      165/60R15

      Wheel

      Size

      15 X 4 1/2J

      Pitch Circle Diameter

      mm (in.)

      100 (3.9)

      Inset

      mm (in.)

      35 (1.3)

      Material

      Steel

      Wheel Cap

      Full Wheel Cap

      Wheel Design / Wheel Cap Design

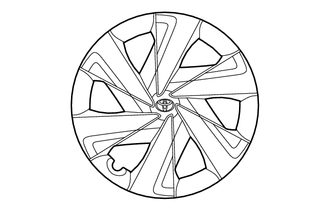

      		 X116881

      Tire Size

      165/60R15

      Wheel

      Size

      15 X 4 1/2J

      Pitch Circle Diameter

      mm (in.)

      100 (3.9)

      Inset

      mm (in.)

      35 (1.3)

      Material

      Aluminum

      Wheel Cap

      Center Ornament

      Wheel Design / Wheel Cap Design

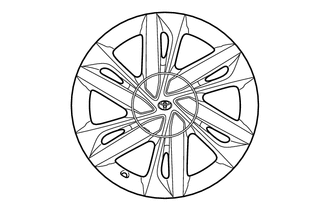

      		 X116879

      Tire Size

      165/60R15

      Wheel

      Size

      15 X 4 1/2J

      Pitch Circle Diameter

      mm (in.)

      100 (3.9)

      Inset

      mm (in.)

      35 (1.3)

      Material

      Aluminum

      Wheel Cap

      -

      Wheel Design / Wheel Cap Design

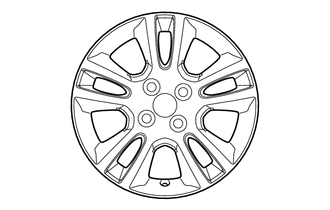

      		 X116877

      Tire Size

      165/60R15

      Wheel

      Size

      15 X 4 1/2J

      Pitch Circle Diameter

      mm (in.)

      100 (3.9)

      Inset

      mm (in.)

      35 (1.3)

      Material

      Aluminum

      Wheel Cap

      -

      Wheel Design / Wheel Cap Design

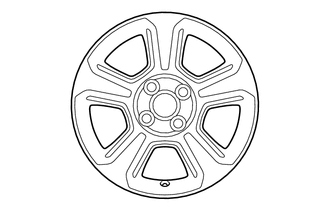

      		 X116878

    2. Puncture Repair Kit

      Item

      Specification

      Usable Temperature Range

      °C (°F)

      -30 to 60 (-22 to 140)

      Maximum Current Consumption

      A

      10

      Sealant

      Repair Seal Liquid Material

      Glycerin, Natural Rubber, Synthetic Rubber,

      Water, Surfactant

      Quantity

      ml (cu. in.)

      350 (21.3)

      Expiration Date

      Displayed on Pucture Repair Liquid Bottle

  3. MAIN FEATURES

    1. Puncture Repair Kit

      1. The puncture repair kit can be used in an emergency to repair a tire that has been punctured by a nail, screw, etc. piercing the tread part of the tire.

        X116899C01

        *1

        Air Compressor Assembly

        *2

        Power Plug

        *3

        Hose

        *4

        Switch

        *5

        Indicator

        *6

        Knob

        *7

        Puncture Repair Liquid Bottle

        *8

        Sealant Applied Sticker

        *9

        Speed Restriction Sticker

        -

        -
