POWER WINDOW REGULATOR MOTOR(for Rear Door) REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE

1. REMOVE DECK BOARD ASSEMBLY

   Click here

2. REMOVE BATTERY SERVICE COVER

   Click here

3. PRECAUTION

   Note:

   After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work.

   Click hereClick hereClick hereClick here

4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

   Note:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click hereClick hereClick here

5. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL LH

   Click here

6. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH

   Click here

7. REMOVE DOOR ASSIST GRIP COVER LH

   Click here

8. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

   Click here

9. REMOVE REAR DOOR SERVICE HOLE COVER LH

   Click here

10. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH

    Click here

11. REMOVE REAR DOOR QUARTER WINDOW GLASS LH

    Click here

12. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH

    Click here

13. REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY LH

    Click here

14. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

    1.

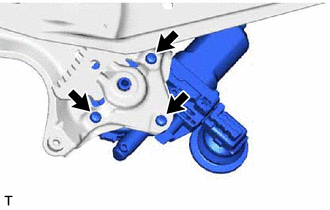

       Using a T25 "TORX" driver, remove the 3 screws and power window regulator motor assembly LH.

       Note:

       Be careful when removing the screws as the motor may fall and become damaged.
