REAR COMBINATION LIGHT ASSEMBLY(for Sedan) DISASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE REAR TURN SIGNAL LIGHT BULB

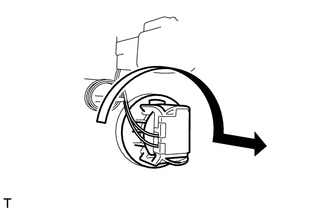

    1. A004NMI

      Turn the bulb/socket unit in the direction indicated by the arrow and remove it.

    2. Remove the bulb from the socket.
