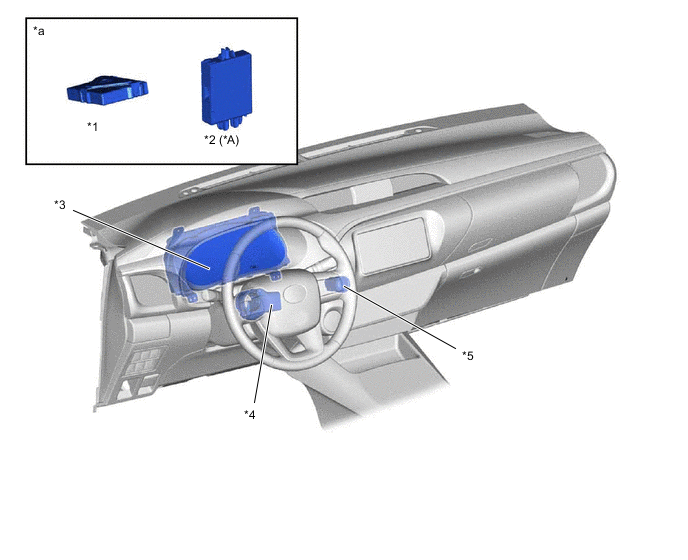

STEERING LOCK SYSTEM

A01KXMRC01
*A Models with ID Code Box - -
*1 Certification ECU (Smart Key ECU Assembly) *2 ID Code Box (Immobiliser Code ECU)
*3

Combination Meter Assembly


  • Multi-information Display

  • Master Warning Light

  • Multi Buzzer

 *4

Steering Lock Actuator Assembly


  • Steering Lock ECU

  • Lock/Unlock Motor
*5 Engine Switch (Push Start Switch) - -
*a Refer to the Service Bulletin for the installation of the part. - -
