AUDIO AND VISUAL SYSTEM AVC-LAN Circuit

DESCRIPTION

Each unit of the navigation system connected to the AVC-LAN (communication bus) transfers the switch signals using the AVC-LAN.

If a short to +B or short to ground occurs in the AVC-LAN, the navigation system will not function normally because communication is not possible.

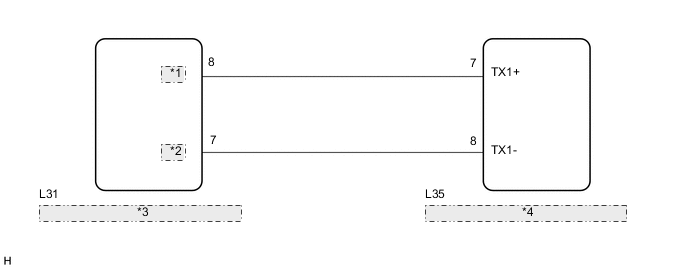

WIRING DIAGRAM

A005DEDE28
*1 ATX+
*2 ATX-
*3 Stereo Component Amplifier Assembly
*4 Radio and Display Receiver Assembly

CAUTION / NOTICE / HINT

Tech Tips

The radio and display receiver assembly is the master unit.

PROCEDURE


  1. INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY


    1. Disconnect the L35 radio and display receiver assembly connectors.

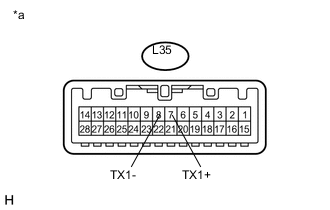

    2. A005BVQE01
      Text in Illustration
      *a

      Component without harness connected

      (Radio and Display Receiver Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      L35-7 (TX1+) - L35-8 (TX1-) Always 60 to 80 Ω

    NG

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY Click here

    OK

  2. CHECK HARNESS AND CONNECTOR (AVC-LAN CIRCUIT)


    1. Disconnect the L35 radio and display receiver assembly connector.

    2. Disconnect the L31 stereo component amplifier assembly connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      L35-7 (TX1+) - L31-8 (ATX+) Always Below 1 Ω
      L35-8 (TX1-) - L31-7 (ATX-) Always Below 1 Ω
      L35-7 (TX1+) - Body ground Always 10 kΩ or higher
      L35-8 (TX1-) - Body ground Always 10 kΩ or higher

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  3. INSPECT MALFUNCTIONING PARTS


    1. Disconnect and reconnect each slave unit one by one until the master unit returns to normal operation.

      Tech Tips


      • Check all slave units.

      • If disconnecting a slave unit causes the master unit to return to normal operation, the slave unit is defective and should be replaced.

      OK
      Master unit returns to normal operation.

    OK

    REPLACE MALFUNCTIONING PARTS

    NG

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY Click here
