IMMOBILISER SYSTEM(w/o Entry and Start System) PARTS LOCATION

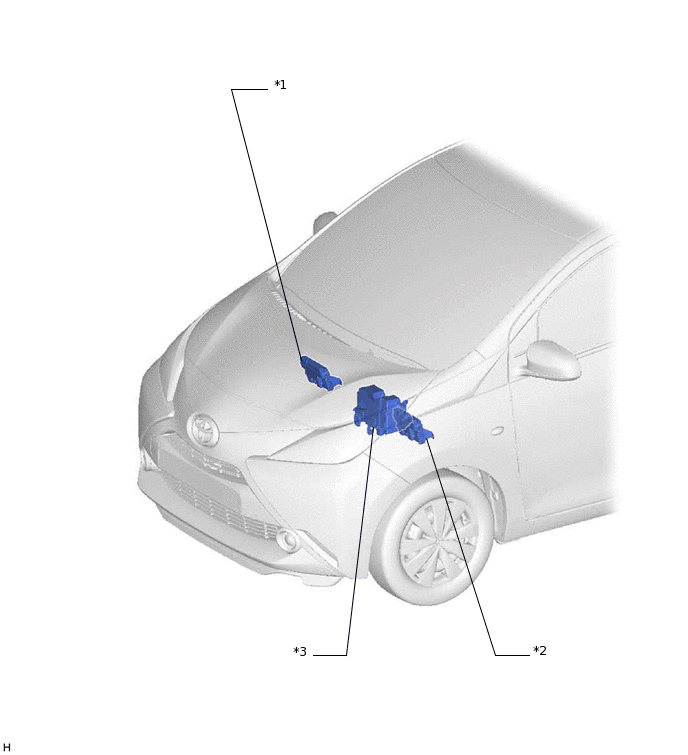

ILLUSTRATION

B371200C01

*1

ECM (for LHD)

*2

ECM (for RHD)

*3

NO. 1 ENGINE ROOM RELAY BLOCK

- AM2 NO. 2 FUSE

-

-

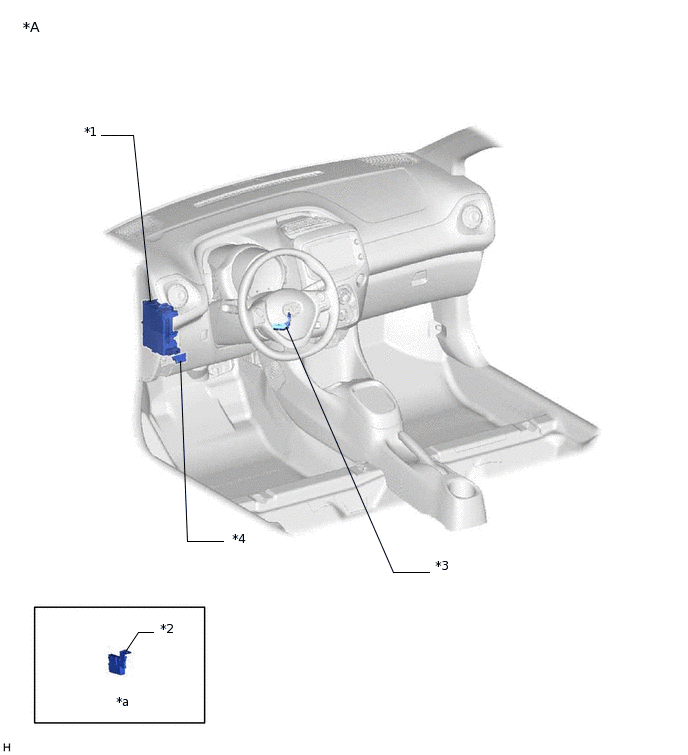

ILLUSTRATION

B371201C01

*A

for LHD

-

-

*1

DRIVER SIDE JUNCTION BLOCK ASSEMBLY

- IG2 NO. 2 FUSE

*2

TRANSPONDER KEY ECU ASSEMBLY

*3

TRANSPONDER KEY COIL

*4

DLC3

*a

Refer to Service Bulletin for the installation position of the part.

-

-

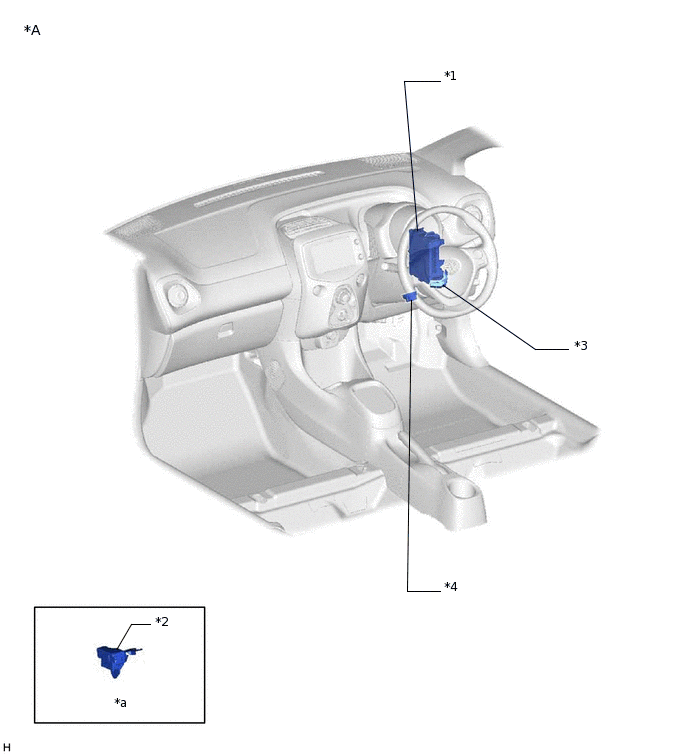

ILLUSTRATION

B371205C01

*A

for RHD

-

-

*1

DRIVER SIDE JUNCTION BLOCK ASSEMBLY

- IG2 NO. 2 FUSE

*2

TRANSPONDER KEY ECU ASSEMBLY

*3

TRANSPONDER KEY COIL

*4

DLC3

*a

Refer to Service Bulletin for the installation position of the part.

-

-
