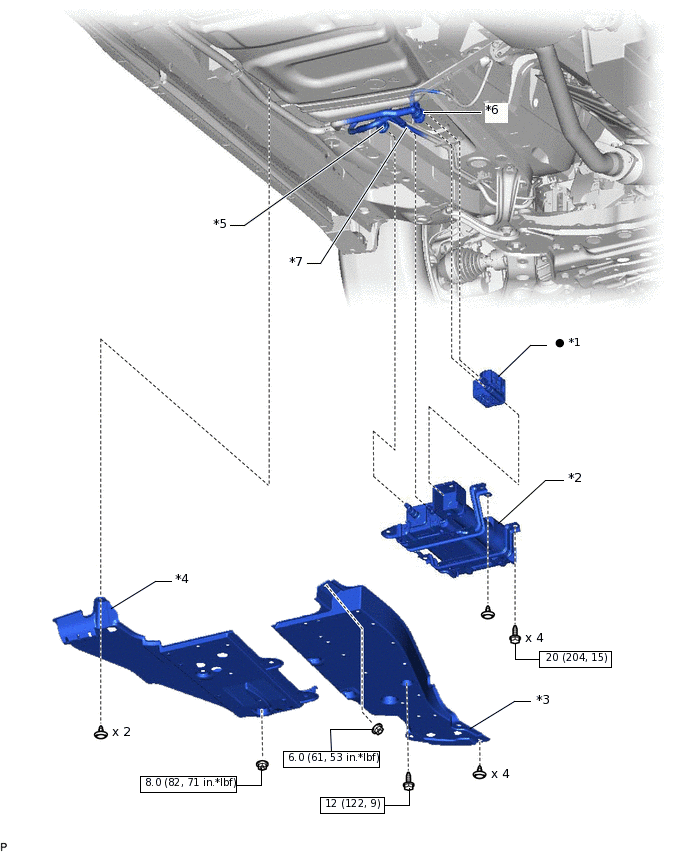

CANISTER(w/ Canister Pump Module) COMPONENTS

*1	CANISTER PUMP MODULE	*2	CHARCOAL CANISTER ASSEMBLY
*3	FRONT FLOOR COVER	*4	NO. 1 FUEL TANK PROTECTOR
*5	VENT LINE HOSE	*6	AIR INLET LINE HOSE
*7	PURGE LINE HOSE	-	-
	Specified torque: Nm (kgfcm, ft.*lbf)	●	Non-reusable part

*1

CANISTER PUMP MODULE

*2

CHARCOAL CANISTER ASSEMBLY

*3

FRONT FLOOR COVER

*4

NO. 1 FUEL TANK PROTECTOR

*5

VENT LINE HOSE

*6

AIR INLET LINE HOSE

*7

PURGE LINE HOSE

-

Specified torque: N*m (kgf*cm, ft.*lbf)

●

Non-reusable part
