LUBRICATION SYSTEM


  1. CONSTRUCTION


    1. An oil filter with a replaceable oil filter element is used. The oil filter element uses a high performance filter paper to improve filtration performance. It is also combustible for environmental friendliness.

    2. A plastic oil filter cap assembly is used to extend its life.

    3. This oil filter has a structure which can allow draining of the oil remaining in the oil filter. This prevents oil from spattering when replacing the oil filter element and allows the technician to work without touching hot oil.

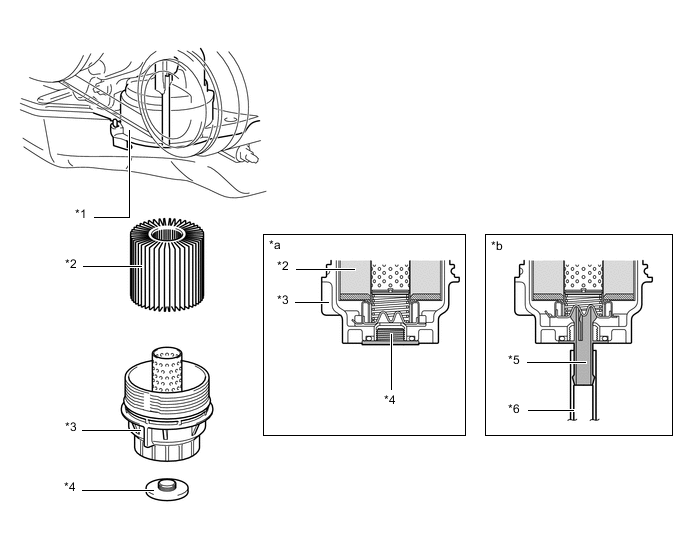

      B0023CXC04
      *1 Crankcase *2 Oil Filter Element
      *3 Oil Filter Cap Assembly *4 Oil Filter Drain Plug
      *5 Drain Pipe *6 Hose (Inside Diameter: 15 mm (0.591 in.))
      *a Cross Section *b When Draining Oil
