CRUISE CONTROL SYSTEM

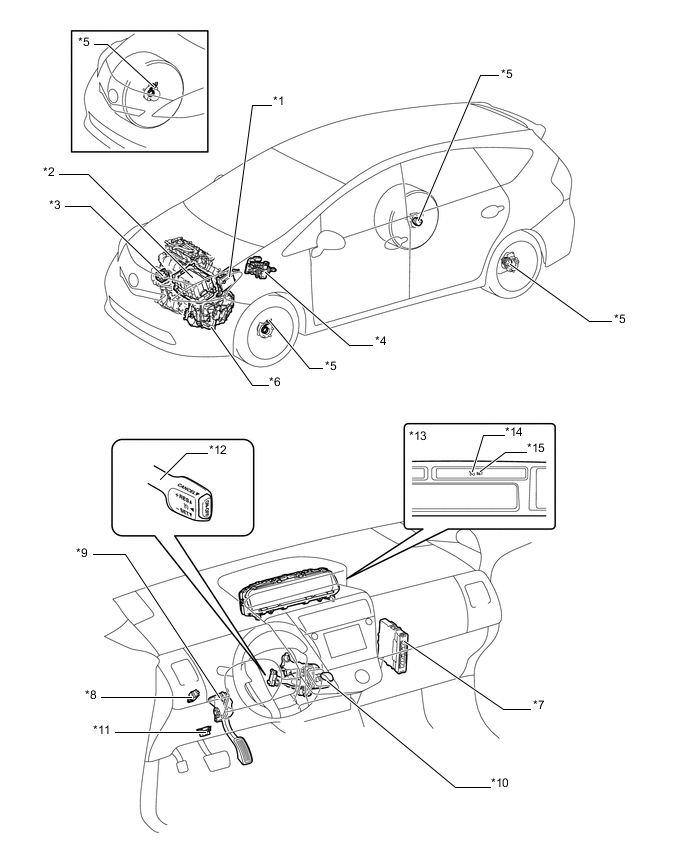

| *1 | ECM | *2 | Inverter with Converter Assembly - MG ECU |
| *3 | Throttle Body Assembly - Throttle Control Motor - Throttle Position Sensor |
*4 | Brake Booster with Master Cylinder Assembly - Skid Control ECU |
| *5 | Speed Sensor | *6 | Hybrid Vehicle Transaxle Assembly - MG2 |
| *7 | Power Management Control ECU | *8 | Stop Light Switch Assembly |
| *9 | Accelerator Pedal Sensor Assembly | *10 | Shift Lock Control Unit Assembly - Shift Lever Position Sensor (Shift Sensor) - Shift Lever Position Sensor (Select Sensor) |
| *11 | DLC3 | *12 | Cruise Control Switch |
| *13 | Combination Meter Sub-assembly | *14 | Cruise Control Indicator Light |
| *15 | Cruise Control SET Indicator Light | - | - |

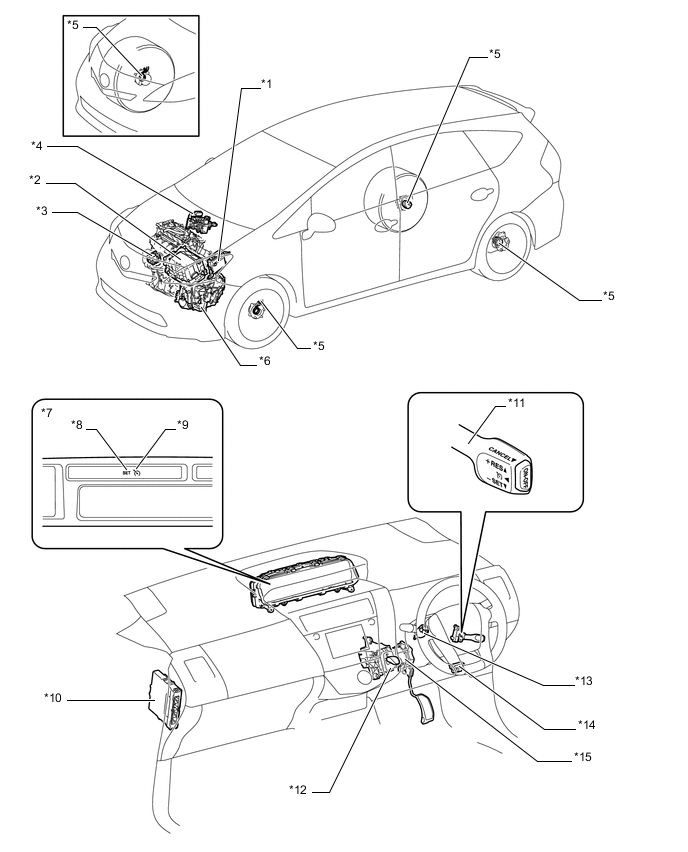

| *1 | ECM | *2 | Inverter with Converter Assembly - MG ECU |
| *3 | Throttle Body Assembly - Throttle Control Motor - Throttle Position Sensor |
*4 | Brake Booster with Master Cylinder Assembly - Skid Control ECU |
| *5 | Speed Sensor | *6 | Hybrid Vehicle Transaxle Assembly - MG2 |
| *7 | Combination Meter Sub-assembly | *8 | Cruise Control SET Indicator Light |
| *9 | Cruise Control Indicator Light | *10 | Power Management Control ECU |
| *11 | Cruise Control Switch | *12 | Shift Lock Control Unit Assembly - Shift Lever Position Sensor (Shift Sensor) - Shift Lever Position Sensor (Select Sensor) |
| *13 | Stop Light Switch Assembly | *14 | DLC3 |
| *15 | Accelerator Pedal Sensor Assembly | - | - |
