REAR BRAKE FLEXIBLE HOSE(for Double Wishbone Type Suspension) REMOVAL

CAUTION / NOTICE / HINT

Note:

If the left and right rear flexible hoses are disconnected at the same time, be sure to place an identification mark on each hose to indicate its installation position.

Tip:

  • Use the same procedure for the LH side and RH side.

  • The following procedure is for the LH side.

PROCEDURE

  1. REMOVE REAR WHEEL

  2. DRAIN BRAKE FLUID

    Note:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  3. REMOVE REAR FLEXIBLE HOSE

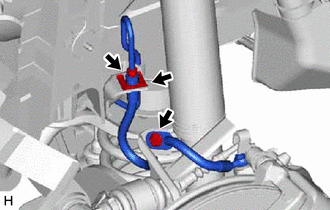

    1. C272651

      Using a union nut wrench, disconnect the brake tube while holding the rear flexible hose with a wrench.

      Note:

      • Do not bend or damage the brake tube.

      • Do not allow any foreign matter such as dirt or dust to enter the brake tube from the connecting parts.

    2. Remove the clip.

    3. Remove the bolt.

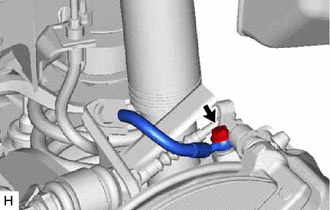

    4. C272650

      Remove the union bolt, gasket and rear flexible hose.
