DYNAMIC RADAR CRUISE CONTROL SYSTEM TC and CG Terminal Circuit

DESCRIPTION

Connecting terminals TC and CG of the DLC3 causes the system to enter self-diagnostic mode. If a malfunction is present, the vehicle-to-vehicle distance control mode indicator will blink.

Tech Tips

When a particular warning light remains blinking, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in the relevant ECU is suspected.

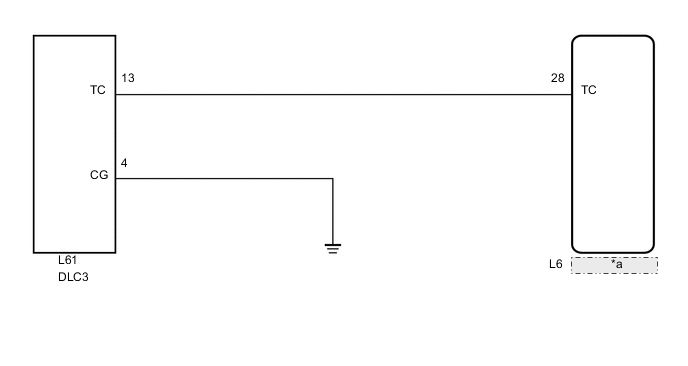

WIRING DIAGRAM

A005D3PE19
*a Hybrid Vehicle Control ECU

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (TERMINAL TC of DLC3 - ECM)


    1. Disconnect the hybrid vehicle control ECU connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)
      Tester Connection Condition Specified Condition
      L6-28 (TC) - L61-13 (TC) Always Below 1 Ω

    3. Reconnect the hybrid vehicle control ECU connector.


    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - HYBRID VEHICLE CONTROL ECU)

    OK

  2. CHECK HARNESS AND CONNECTOR (TERMINAL CG of DLC3 - BODY GROUND)


    1. A005CETE02
      Text in Illustration
      *a DLC3

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)
      Tester Connection Condition Specified Condition
      L61-4 (CG) - Body ground Always Below 1 Ω

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - BODY GROUND)

    OK

  3. CHECK HARNESS AND CONNECTOR (TERMINAL TC of DLC3 - BODY GROUND)


    1. A005ABCE02
      Text in Illustration
      *a DLC3

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      L61-13 (TC) - Body ground Always 10 kΩ or higher

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU
