ROAD SIGN ASSIST SYSTEM

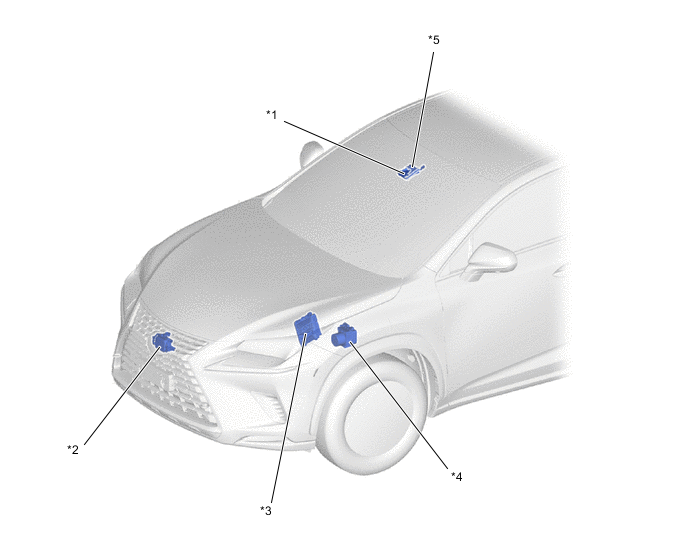

| *1 | Camera Heater (Forward Recognition Hood with Heater Sub-assembly) | *2 | Millimeter Wave Radar Sensor Assembly |
| *3 | ECM | *4 | Skid Control ECU Assembly |
| *5 | Forward Recognition Camera | - | - |
| *A | Models with Headup Display | *B | Models with Navigation System |

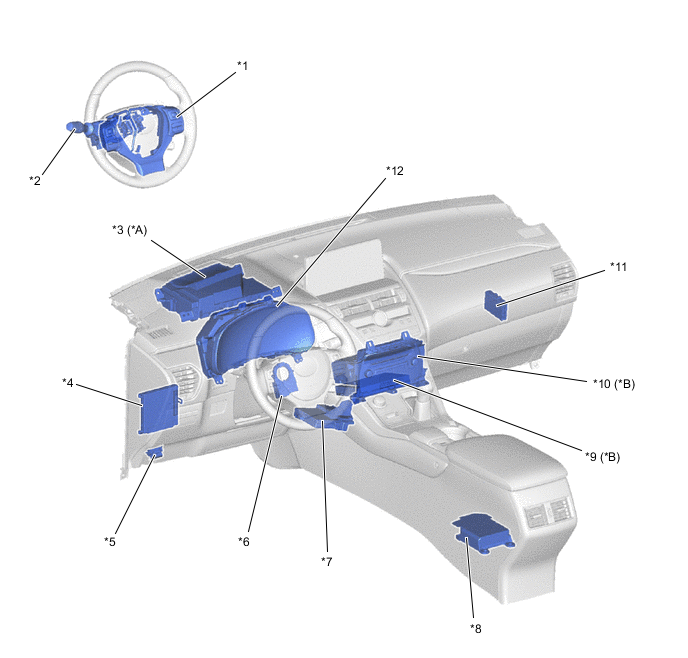

| *1 | Steering Pad Switch Assembly
|
*2 | Headlight Dimmer Switch Assembly |
| *3 | Headup Display (Combination Meter Mirror ECU) | *4 | Main Body ECU (Multiplex Network Body ECU) |
| *5 | DLC3 | *6 | Steering Sensor |
| *7 | Air Conditioning Amplifier Assembly | *8 | Airbag ECU Assembly |
| *9 | Navigation ECU | *10 | Radio Receiver Assembly |
| *11 | Central Gateway ECU (Network Gateway ECU) | *12 | Combination Meter Assembly
|
