HYBRID TRANSAXLE SIDE GEAR OIL SEAL REPLACEMENT

PROCEDURE

  1. REMOVE DIFFERENTIAL SIDE GEAR SHAFT SUB-ASSEMBLY RH

    Click here

  2. REMOVE REAR TRANSAXLE SIDE GEAR OIL SEAL

    1. for LH Side:

      1. C298106C02

        *a

        Hold

        *b

        Turn

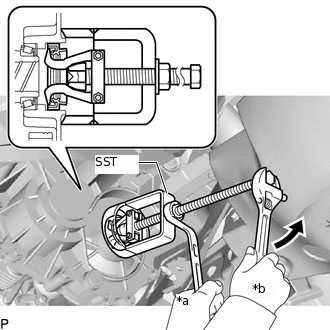

        Using SST, remove the rear transaxle side gear oil seal from the rear traction motor with transaxle assembly.

        09612-65014

        09612-01020

    2. for RH Side:

      1. C298107C02

        *a

        Hold

        *b

        Turn

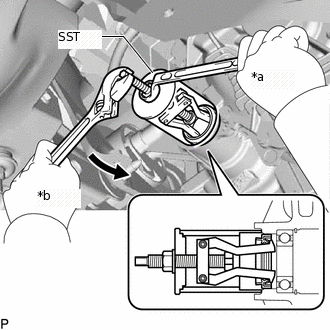

        Using SST, remove the rear transaxle side gear oil seal from the rear traction motor with transaxle assembly.

        09612-30012

  3. INSTALL REAR TRANSAXLE SIDE GEAR OIL SEAL

    1. for LH Side:

      1. Apply MP grease to the lip of a new rear transaxle side gear oil seal.

      2. C298108N02

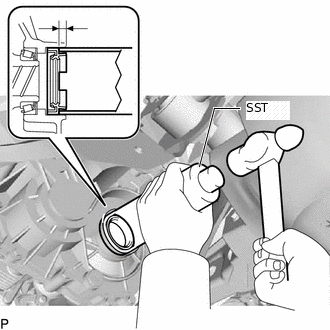

        Using SST and a hammer, install the rear transaxle side gear oil seal to the rear traction motor with transaxle assembly.

        09316-60011

        09316-00011

        Standard Depth

        7.1 to 8.1 mm (0.280 to 0.318 in.)

        Note:

        • Do not install the rear transaxle side gear oil seal at an angle.

        • Do not damage the rear transaxle side gear oil seal.

    2. for RH Side:

      1. Apply MP grease to the lip of a new rear transaxle side gear oil seal.

      2. C298109N02

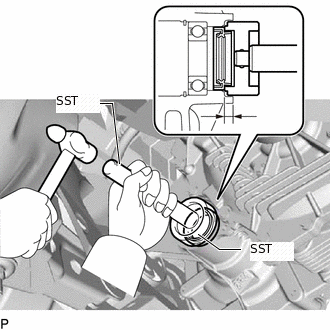

        Using SST and a hammer, install the rear transaxle side gear oil seal to the rear traction motor with transaxle assembly.

        09350-32014

        09351-32150

        09950-70010

        09951-07100

        Standard Depth

        7.1 to 8.1 mm (0.280 to 0.318 in.)

        Note:

        • Do not install the rear transaxle side gear oil seal at an angle.

        • Do not damage the rear transaxle side gear oil seal.

  4. INSTALL DIFFERENTIAL SIDE GEAR SHAFT SUB-ASSEMBLY RH

    Click here
