WIRELESS DOOR LOCK BUZZER REMOVAL

PROCEDURE

  1. REMOVE FRONT WHEEL LH

    Click here

  2. REMOVE FRONT FENDER LINER LH

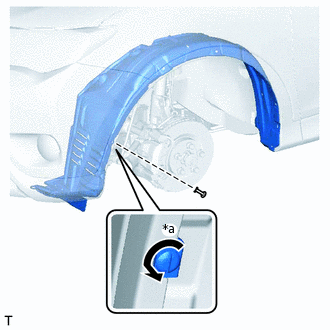

    1. B337037C01

      *a

      90°

      Using a screwdriver, turn the pin hold clip 90 degrees counterclockwise and remove the pin hold clip.

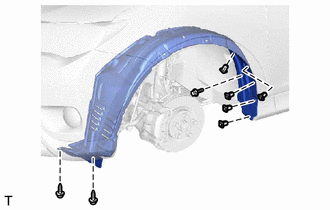

    2. B337038

      Remove the 3 screws and 5 grommets.

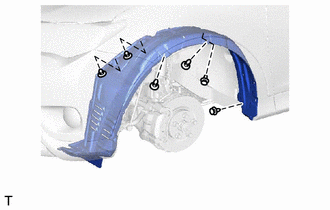

    3. B337039

      Remove the 6 clips and front fender liner LH.

  3. REMOVE WIRELESS DOOR LOCK BUZZER

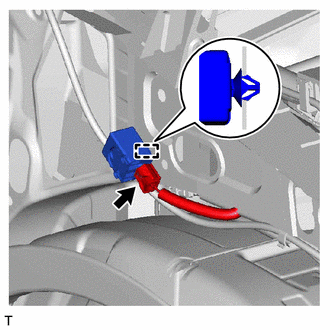

    1. B337040

      Disconnect the connector.

    2. Detach the clamp and remove the wireless door lock buzzer.
