WASHER NOZZLE(for Front) REMOVAL

PROCEDURE

  1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

    Tip:

    Use the same procedure to remove the other washer nozzle.

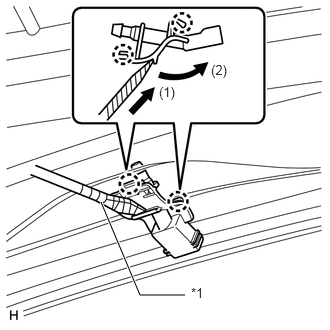

    1. E178070E03

      Using a screwdriver, detach the 2 claws and remove the washer nozzle sub-assembly as shown in the illustration.

      Table 1. Text in Illustration

      *1

      Protective Tape
      Note:

      Be careful not to damage the windshield.

      Tip:

      Tape the screwdriver tip before use.

    2. E178071

      Disconnect the washer nozzle sub-assembly from the washer hose.

      Note:

      Washer nozzles cannot be reused.
