LUGGAGE COMPARTMENT DOOR OPENER SYSTEM

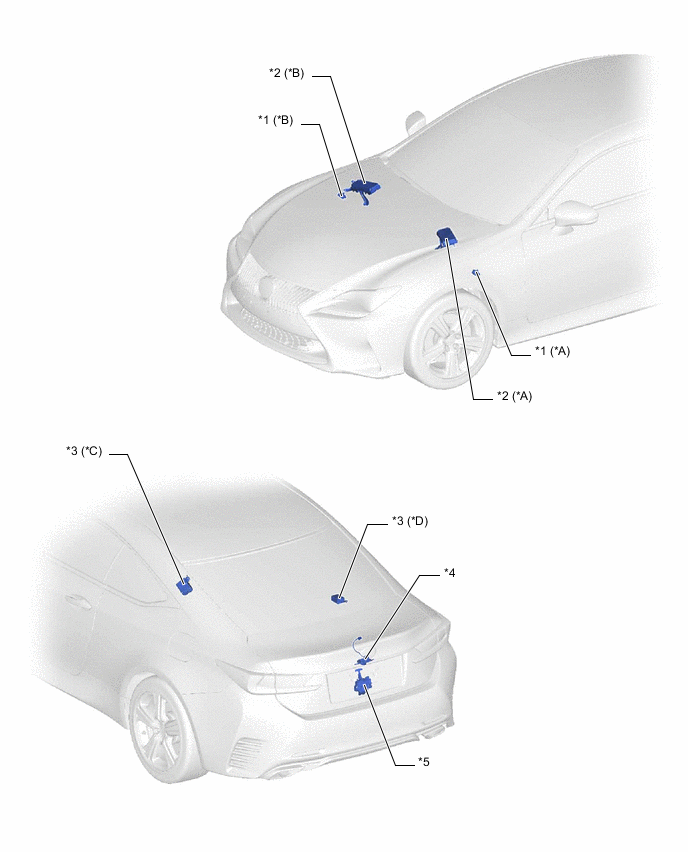

| *A | LHD Models | *B | RHD Models |
| *C | Models with Door Control Receiver in Quarter Pillar | *D | Models with Door Control Receiver under Package Tray Trim Panel |
| *1 | WIRELESS DOOR LOCK BUZZER | *2 | SKID CONTROL ECU ASSEMBLY |
| *3 | DOOR CONTROL RECEIVER | *4 | LUGGAGE ELECTRICAL KEY SWITCH |
| *5 | LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
|
- | - |

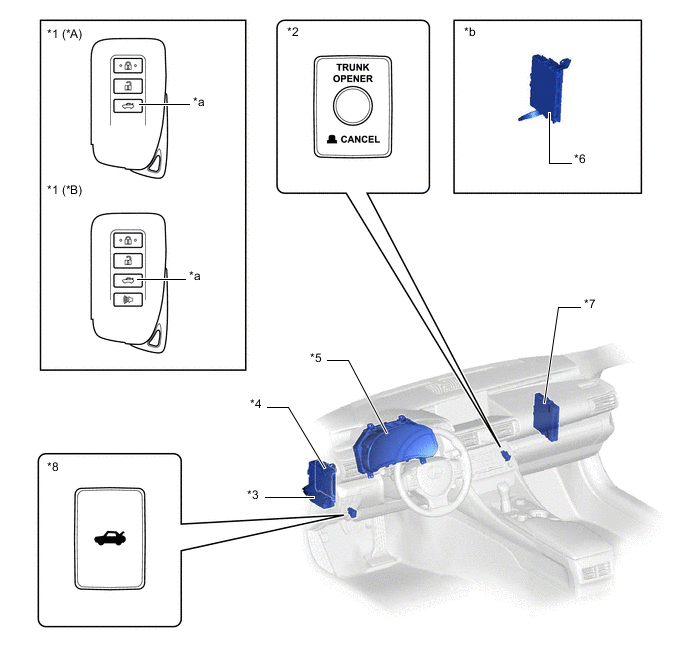

Figure 1. LHD Models
| *A | Models without Panic Switch | *B | Models with Panic Switch |
| *1 | ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY | *2 | LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | COMBINATION METER ASSEMBLY | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | *8 | LUGGAGE DOOR OPENING SWITCH ASSEMBLY |
| *a | Luggage Compartment Door Opener Switch | *b | Refer to Service Bulletin for the installation position of the part. |

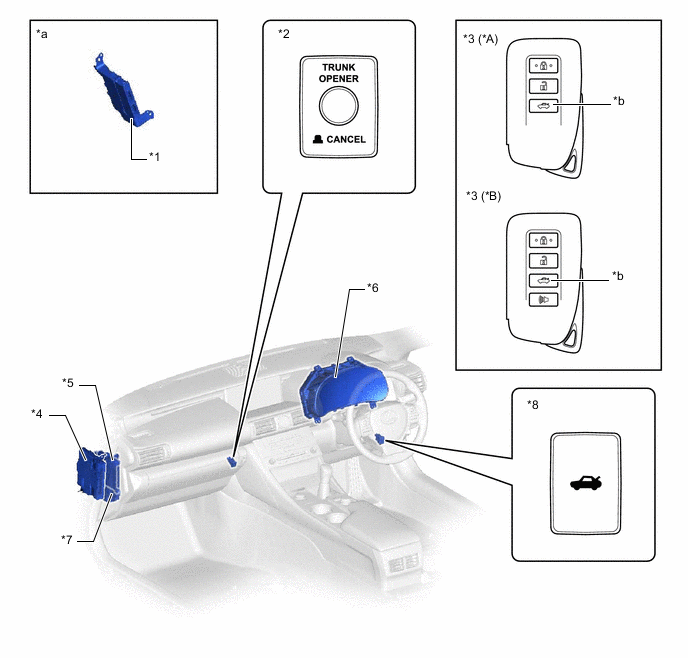

Figure 2. RHD Models
| *A | Models without Panic Switch | *B | Models with Panic Switch |
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY |
| *3 | ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY | *4 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | COMBINATION METER ASSEMBLY |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | *8 | LUGGAGE DOOR OPENING SWITCH ASSEMBLY |
| *a | Refer to Service Bulletin for the installation position of the part. | *b | Luggage Compartment Door Opener Switch |
