REAR AIRBAG SENSOR INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL SIDE NO. 2 AIRBAG SENSOR ASSEMBLY




   1. Check that the power switch is off.

   2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

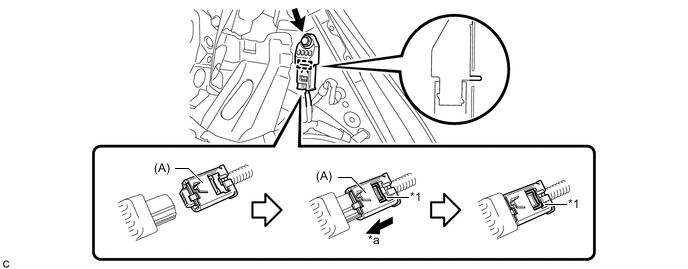

   3. Before connecting the connector, check that the position of the white housing lock is correct as shown in the illustration.



   4. Insert the pin (stopper) into the body hole and install the side No. 2 airbag sensor assembly to the vehicle body with the bolt.



      Text in Illustration

      *1	White Housing Lock	-	-
      *a	Slide	-	-

      Torque:

      9.0 N*m  { 92 kgf*cm, 80 in.*lbf }

      Note




      • If the side No. 2 airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

      • When installing the side No. 2 airbag sensor assembly, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

      • Make sure that the pin (stopper) is securely inserted into the body hole.

      • Tighten the bolt while holding the side No. 2 airbag sensor assembly because the side No. 2 airbag sensor assembly pin (stopper) is easily damaged.

   5. Connect the connector to the side No. 2 airbag sensor assembly.

      Note

      When connecting any airbag connector, take care not to damage the airbag wire harness.




      1. Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).

         Tech Tips

         When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and part (A), as it may result in an insecure fit.

   6. Check that there is no looseness in the installation parts of the side No. 2 airbag sensor assembly.

2. INSTALL DECK TRIM SIDE PANEL ASSEMBLY

   Click here

3. INSTALL NO. 2 ROOM LIGHT ASSEMBLY

   Click here

4. CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY (for Lower Side)

   Click here

5. CONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY

   Click here

6. INSTALL FRONT DECK SIDE TRIM COVER

   Click here

7. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

   Click here

8. INSTALL NO. 1 DECK TRIM COVER

   Click here

9. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP

10. INSTALL REAR DOOR SCUFF PLATE

    Click here

11. INSTALL BACK DOOR SCUFF PLATE

    Click here

12. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

13. INSTALL REAR NO. 2 SEAT ASSEMBLY

    Click here

14. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Click here

15. PERFORM DIAGNOSTIC SYSTEM CHECK

    Click here

16. INSPECT SRS WARNING LIGHT

    Click here
