BRAKE PEDAL(for RHD) REMOVAL

PROCEDURE

  1. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click hereClick hereClick hereClick here

  2. REMOVE DECK BOARD ASSEMBLY

    Click here

  3. REMOVE BATTERY SERVICE COVER

    Click here

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Click here

  5. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Click here

  6. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY

    Click here

  7. REMOVE STOP LIGHT SWITCH ASSEMBLY

    Click here

  8. REMOVE BRAKE PEDAL RETURN SPRING

    1. Remove the brake pedal return spring from the brake pedal support assembly.

  9. REMOVE PUSH ROD PIN

    1. Remove the clip from the push rod pin.

    2. Remove the push rod pin from the push rod clevis.

  10. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

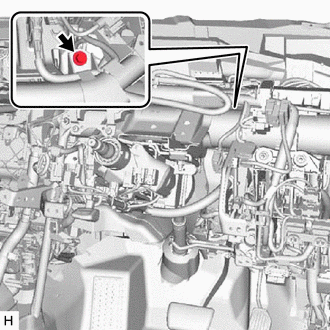

    1. C306331

      Remove the brake pedal support reinforcement set bolt.

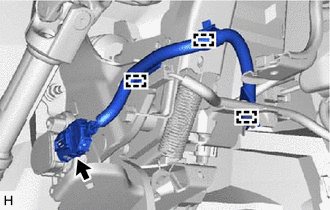

    2. C306332

      Disconnect the brake pedal stroke sensor connector from the brake pedal stroke sensor assembly.

    3. Disconnect the 3 clamps from the brake pedal support assembly.

    4. Remove the 4 nuts and brake pedal support assembly.

  11. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

    Click here

  12. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

    Click here

  13. REMOVE BRAKE PEDAL PAD

    1. Remove the brake pedal pad from the brake pedal support assembly.
