METER / GAUGE SYSTEM


  1. FUNCTION


    1. Rear Seat Belt Warning


      1. The rear seat belt warning function indicates the state of the rear seat belts using the telltale light assembly.

      2. The combination meter assembly sends a rear seat belt warning signal to the telltale light assembly based on the rear seat belt buckle switches and courtesy switches for the rear doors. When the signal is received, the telltale light assembly operates the lights. If a warning is necessary, the buzzer in the combination meter assembly will also sound.

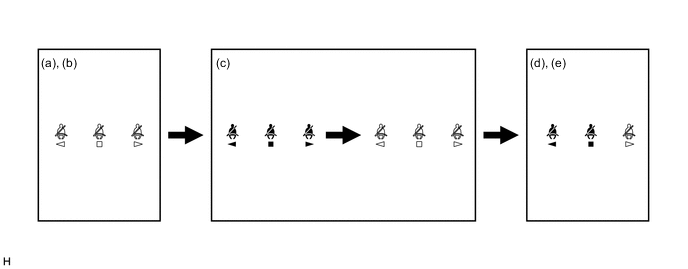

      3. The flow of operations that results in a rear seat belt warning is as follows:

        B00232WE01
        Step Condition Transition Clock Display Buzzer
        (a) Ignition switch is off. Warning is not displayed. No Sound
        (b) A rear door is opened then closed.
        (c)

        • Ignition switch is turned to ON.

        • A seat belt is fastened.

        • In this case, all seats will be displayed as being unfastened regardless of the number of occupants. If seat belts are then fastened, the display for the relevant seat will go off.

        • The warning will be displayed for approximately 30 seconds and then go off.
        (d) Any of the rear seat belts are unfastened. Seats with an unfastened seat belt will be displayed regardless of the number of occupants.

        If the vehicle speed exceeds 20 km/h (approximately 12 mph):

        1. Sounds for 6 seconds*1

        2. Sounds for an additional 30 seconds*2
        (e)

        When one of the following conditions is met, the buzzer will stop sounding.

        - The seat belt is refastened.

        - The vehicle speed decreases to less than approximately 2 km/h (approximately 1.2 mph) and either the parking brake is applied or the shift lever is in P.

        • Seats with an unfastened seat belt will be displayed regardless of the number of occupants.

        • The warning will be displayed for approximately 36 seconds and then go off.

        		 Stops sounding

        *1: Sound cycle is 1.2 seconds.

        *2: Sound cycle is 0.4 seconds.
