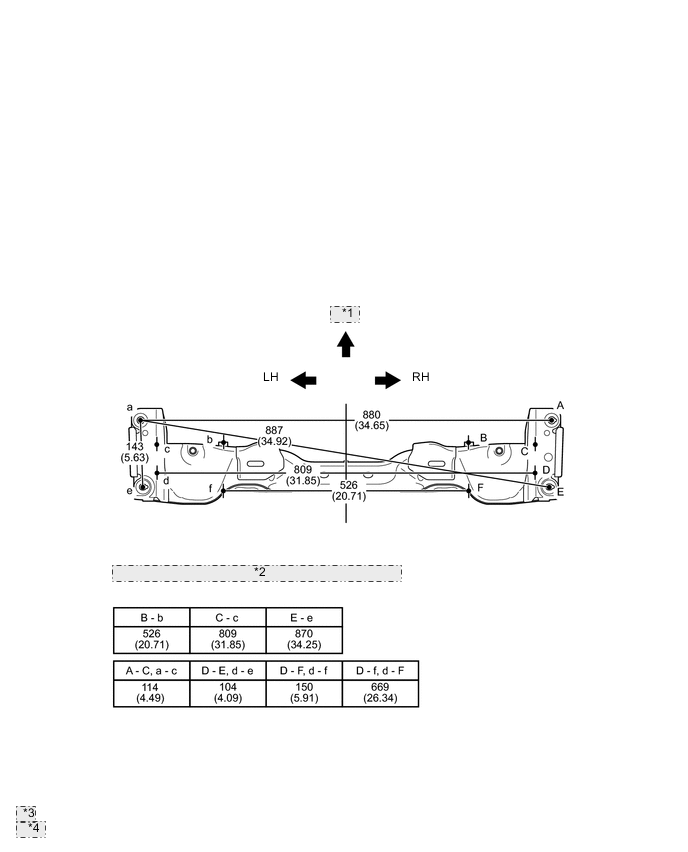

FRONT SUSPENSION CROSSMEMBER THREE-DIMENSIONAL DISTANCE
Tech Tips
-
In cases in which only one dimension is given, left and right are symmetrical.
-
For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).
| Symbol | Name | Hole Diameter mm (in.) |
|---|---|---|
| A | Front Suspension Crossmember Installation Hole | 15X16 (0.59X0.63) |
| a | Front Suspension Crossmember Installation Hole | φ16 (0.63) |
| B, b | Gear Box Installation Hole | φ15 (0.59) |
| C, c | Front Suspension Lower Arm Installation Hole | φ12.5 (0.49) |
| D, d | Front Suspension Lower Arm Installation Hole | φ12.5 (0.49) |
| E | Front Suspension Crossmember Installation Hole | φ13.5 (0.53) |
| e | Front Suspension Crossmember Installation Hole | 12.5X16 (0.49X0.63) |
| F, f | Gear Box Installation Hole | φ14 (0.55) |
| *1 | Front |
| *2 | Distance between points other than those above |
| *3 | mm |
| *4 | (in.) |
