REAR LIGHT ASSEMBLY(except Sedan) DISASSEMBLY

PROCEDURE

  1. REMOVE REAR LIGHT GASKET

    E314531

    1. Remove the rear light gasket.

      Note:

      • Be sure to remove all traces of the old gasket from the body.

      • Do not reuse the removed gasket. Be sure to install a new rear light gasket to prevent water ingress.

  2. REMOVE BACK-UP LIGHT BULB

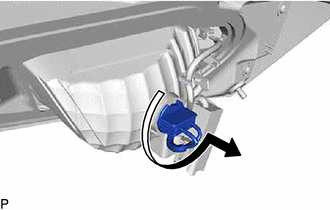

    1. E314532

      Turn the rear light socket and wire with the back-up light bulb in the direction indicated by the arrow in the illustration to disconnect them as a unit.

    2. Remove the back-up light bulb from the rear light socket and wire.

  3. REMOVE REAR LIGHT SOCKET AND WIRE

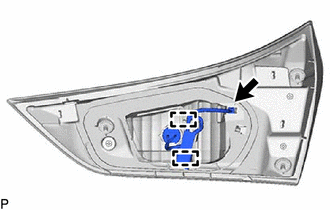

    1. E314534

      Disconnect each connector.

    2. Disengage the 2 clamps to remove the rear light socket and wire.

  4. REMOVE REAR LIGHT LENS AND BODY
