COOLING FAN MOTOR COMPONENTS
ILLUSTRATION
*1 |
FAN SHROUD ASSEMBLY |
*2 |
NO. 2 WATER BY-PASS HOSE |
*3 |
BATTERY |
*4 |
BATTERY CLAMP SUB-ASSEMBLY |
*5 |
NO. 2 BATTERY CLAMP |
*6 |
AIR CLEANER CASE SUB-ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

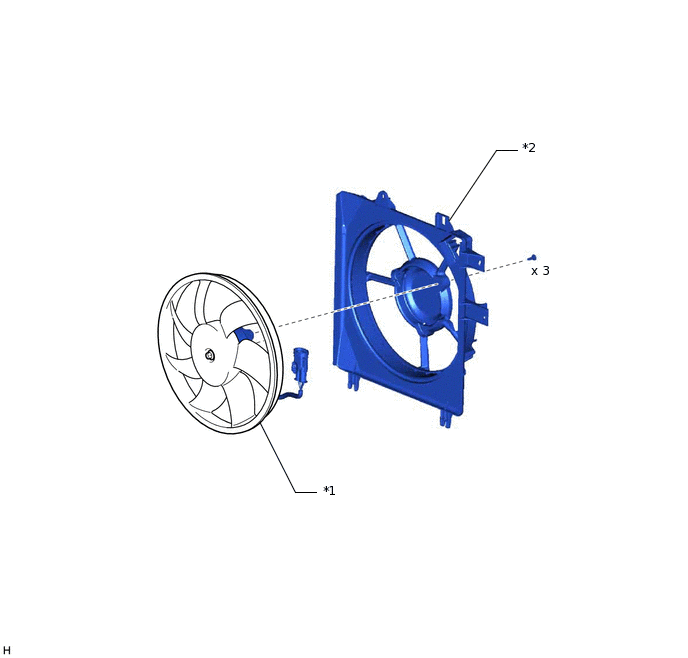

ILLUSTRATION
*1 |
COOLING FAN MOTOR WITH FAN |
*2 |
FAN SHROUD |
