WIPER AND WASHER SYSTEM

A004GOPE02

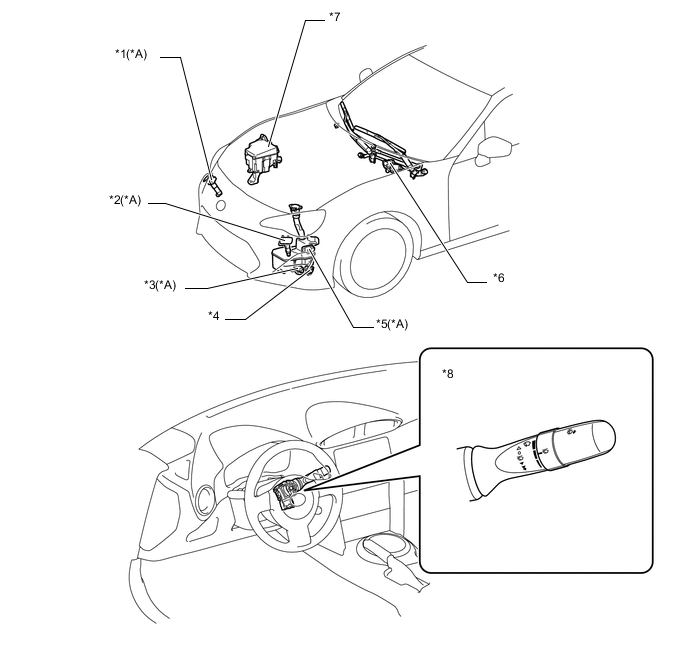

Text in Illustration
*A Models with headlight cleaner system - -
*1 Headlight Washer Actuator Sub-assembly RH *2 Headlight Washer Actuator Sub-assembly LH
*3 Headlight Cleaner Motor and Pump Assembly *4 Windshield Washer Motor and Pump Assembly
*5 Headlight Cleaner Control Relay *6

  • Front Wiper Motor and Link Assembly


    • Windshield Wiper Motor Assembly
*7

  • Engine Room Relay Block


    • Headlight Relay

 *8

  • Windshield Wiper Switch Assembly


    • Windshield Wiper Switch

    • Windshield Wiper Relay

    • Windshield Washer Switch

    • Time Interval Adjuster
