INTAKE MANIFOLD COMPONENTS

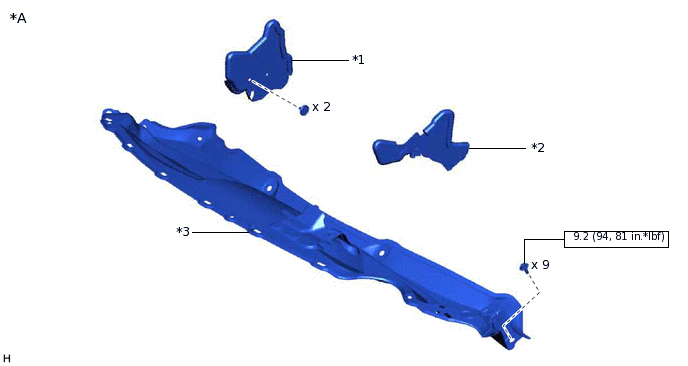

ILLUSTRATION

C302729C04

*A

for LHD

-

-

*1

FRONT AIR SHUTTER SEAL RH

*2

FRONT NO. 1 VENTILATOR SEAL

*3

OUTER COWL TOP PANEL

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

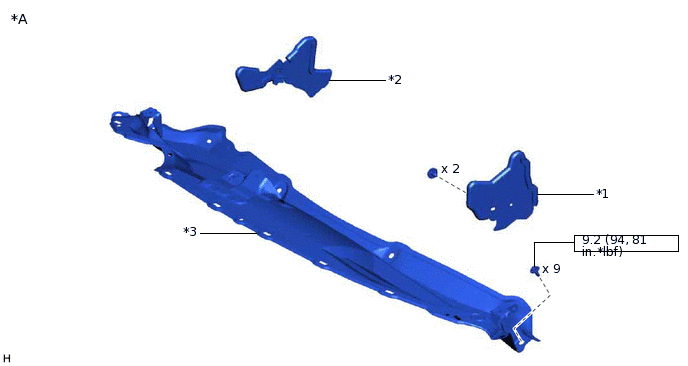

ILLUSTRATION

C302764C04

*A

for RHD

-

-

*1

FRONT AIR SHUTTER SEAL RH

*2

FRONT NO. 1 VENTILATOR SEAL

*3

OUTER COWL TOP PANEL

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

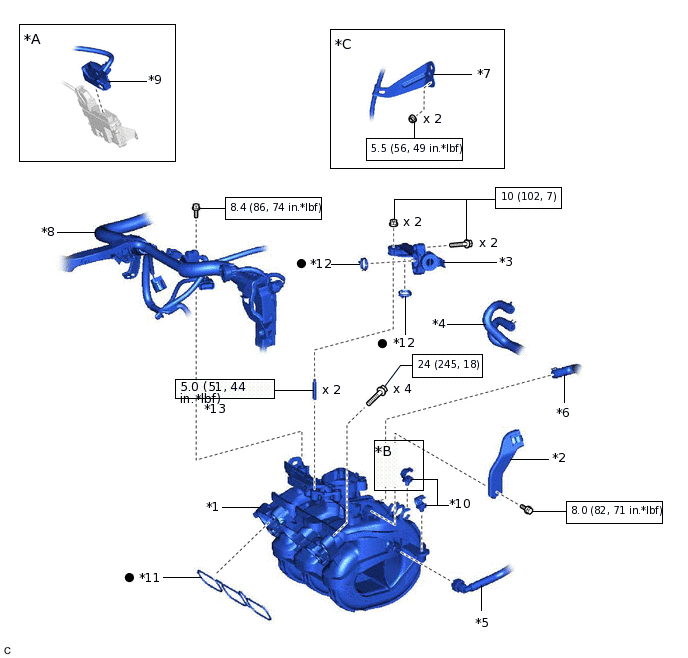

ILLUSTRATION

A426664C01

*A

for LHD

*B

for RHD

*C

for Manual Transaxle

-

-

*1

INTAKE MANIFOLD

*2

FUEL HOSE BRACKET

*3

NO. 1 EGR PIPE SUB-ASSEMBLY

*4

WATER BY-PASS HOSE ASSEMBLY

*5

VACUUM HOSE ASSEMBLY

*6

NO. 2 FUEL VAPOR FEED HOSE

*7

CLUTCH CABLE BRACKET

*8

ENGINE WIRE

*9

ECM CONNECTOR

*10

HOSE CLAMP

*11

NO. 1 INTAKE MANIFOLD TO HEAD GASKET

*12

EGR PIPE GASKET

*13

STUD BOLT

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
