SEAT BELT WARNING SYSTEM(w/ Occupant Classification System) PARTS LOCATION

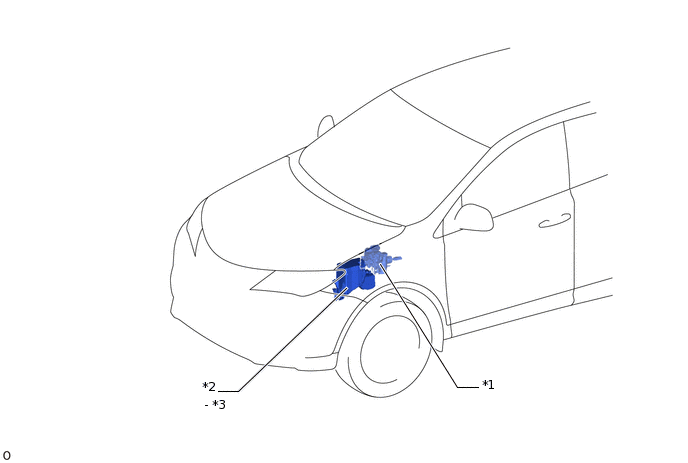

*1	BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY (SKID CONTROL ECU)	*2	NO. 1 ENGINE ROOM RELAY BLOCK
*3	ECU-B NO.2 FUSE	-	-

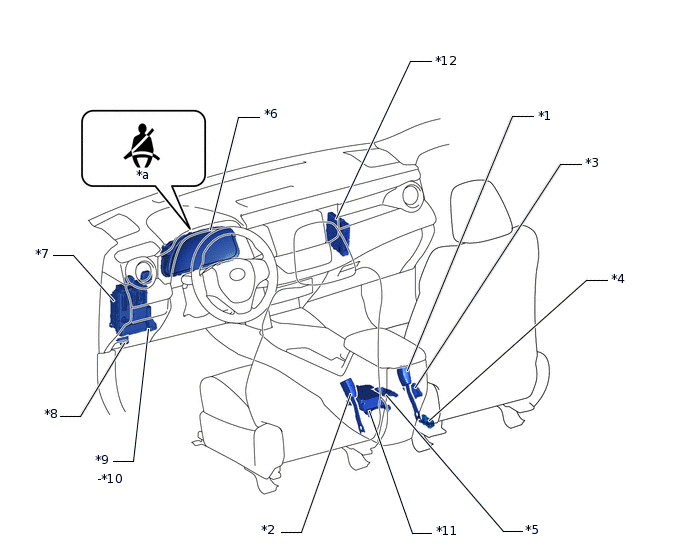

*1	FRONT SEAT INNER BELT ASSEMBLY RH	*2	FRONT SEAT INNER BELT ASSEMBLY LH
*3	OCCUPANT DETECTION ECU	*4	REAR OCCUPANT CLASSIFICATION SENSOR LH
*5	FRONT OCCUPANT CLASSIFICATION SENSOR LH	*6	COMBINATION METER ASSEMBLY
*7	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*8	DLC3
*9	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY	*10	METER FUSE
*11	AIRBAG SENSOR ASSEMBLY	*12	HYBRID VEHICLE CONTROL ECU
*a	FRONT SEAT BELT WARNING LIGHT	-	-

*1

FRONT SEAT INNER BELT ASSEMBLY RH

*2

FRONT SEAT INNER BELT ASSEMBLY LH

*3

OCCUPANT DETECTION ECU

*4

REAR OCCUPANT CLASSIFICATION SENSOR LH

*5

FRONT OCCUPANT CLASSIFICATION SENSOR LH

*6

COMBINATION METER ASSEMBLY

*7

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*8

DLC3

*9

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

*10

METER FUSE

*11

AIRBAG SENSOR ASSEMBLY

*12

HYBRID VEHICLE CONTROL ECU

*a

FRONT SEAT BELT WARNING LIGHT

-
